Millimar P1300 TA

Art. no. 4400190

Inductive probe Millimar P1300 TA
Compatibility: Tesa
Measuring range mm: ± 2 mm
Vacuum lifter (standard option)
Measuring force (N): 0,75 N +/- 0,15 N
Package contains: test certificate, instruction manual, spanner for preliminary stroke setting, hose connector for compressed air

  • Tesa compatibility
  • Tesa half-bridge technology
  • Very easy to service: cables and probes can be separated via the plug-in connector
  • Easy to convert to pneumatic lifting
  • Measuring pin mounted in rotary stroke bearing
  • Chemical resistance data: resistant to oil, gasoline, water and aliphatic compunds. Moderately resistant to acids, bases, solvents and ozone
Millimar P1300 TA | Art. no. 4400190
Measuring range from -2 mm
Measuring range up to 2 mm
Product type P1300 TA
Distance of lower stop MIN -2.2 mm
Distance of lower stop MAX 0 mm
Distance of upper stop MIN 2.2 mm
Distance of upper stop MAX 4.4 mm
Lifter / retraction Vacuum lifter (standard option)
Measuring force (N) 0,75 N +/- 0,15 N
Increase in measuring force 0,3 N/mm
Sensitivity deviation 0.3 %
Repeatability fw (µm) 0.1 µm
Measuring value hysteresis fu (µm) 0.5 µm
Linearity deviation within +/- 0,5 mm 1 µm
Linearity deviation within +/- 1,0 mm 3 µm
IP protection category IP 64
Cable length 2.5 m
Operating temperature Min 10 °C
Operating temperature Max 40 °C
Storage temperature MIN -10 °C
Storage temperature MAX 80 °C
Temperature coefficient 0.15 µm/°C
Compatibility Tesa
Dimensions a 94.2 mm | b 61.9 mm | c 107.2 mm | d 133.6 mm |

 Dimensional drawing 1

Đầu đo Millimar P1300 TB
Đầu đo Millimar P1300 TB

Millimar P1300 TB

Art. no. 4400191

Inductive probe Millimar P1300 TB
Compatibility: Tesa
Measuring range mm: ± 2 mm
Compressed air retraction (max. 1 bar)
Measuring force (N): Depending upon air pressure
Package contains: test certificate, instruction manual, spanner for preliminary stroke setting, hose connector for compressed air

  • Tesa compatibility
  • Tesa half-bridge technology
  • with compressed-air retraction
  • Very easy to service: cables and probes can be separated via the plug-in connector
  • Measuring pin mounted in rotary stroke bearing
  • Chemical resistance data: resistant to oil, gasoline, water and aliphatic compounds. Moderately resistant to acids, bases, solvents and ozone
Millimar P1300 TB | Art. no. 4400191
Measuring range from -2 mm
Measuring range up to 2 mm
Product type P1300 TB
Distance of lower stop MIN -2.2 mm
Distance of lower stop MAX 0 mm
Distance of upper stop MIN 2.2 mm
Distance of upper stop MAX 4.4 mm
Lifter / retraction Compressed air retraction (max. 1 bar)
Measuring force (N) Depending upon air pressure
Sensitivity deviation 0.3 %
Repeatability fw (µm) 0.1 µm
Measuring value hysteresis fu (µm) 0.5 µm
Linearity deviation within +/- 0,5 mm 1 µm
Linearity deviation within +/- 1,0 mm 3 µm
IP protection category IP 64
Cable length 2.5 m
Operating temperature Min 10 °C
Operating temperature Max 40 °C
Storage temperature MIN -10 °C
Storage temperature MAX 80 °C
Temperature coefficient 0.15 µm/°C
Compatibility Tesa
Dimensions a 94.2 mm | b 61.9 mm | c 107.2 mm | d 133.6 mm |



Dimensional drawing 1

Đầu đo Millimar P1300 MB
Đầu đo Millimar P1300 MB

Millimar P1300 MB

Art. no. 4400181

Inductive probe Millimar P1300 MB
Compatibility: Mahr half-bridge
Measuring range mm: ± 2 mm
Pneumatic jacking (max. 1 bar)
Measuring force (N): Depending upon air pressure
Package contains: test certificate, instruction manual, spanner for preliminary stroke setting, hose connector for compressed air

  • Mahr compatibility
  • Proven Mahr half-bridge technology
  • with compressed-air retraction
  • Very easy to service: cables and probes can be separated via the plug-in connector
  • Measuring pin mounted in rotary stroke bearing
  • Chemical resistance data: resistant to oil, gasoline, water and aliphatic compounds. Moderately resistant to acids, bases, solvents and ozone
Millimar P1300 MB | Art. no. 4400181
Measuring range from -2 mm
Measuring range up to 2 mm
Product type P1300 MB
Distance of lower stop MIN -2.2 mm
Distance of lower stop MAX 0 mm
Distance of upper stop MIN 2.2 mm
Distance of upper stop MAX 4.4 mm
Lifter / retraction Pneumatic jacking (max. 1 bar)
Measuring force (N) Depending upon air pressure
Sensitivity deviation 0.3 %
Repeatability fw (µm) 0.1 µm
Measuring value hysteresis fu (µm) 0.5 µm
Linearity deviation within +/- 0,5 mm 0.4 µm
Linearity deviation within +/- 1,0 mm 1.5 µm
Linearity deviation within +/- 2,0 mm 3 µm
IP protection category IP 64
Cable length 2.5 m
Operating temperature Min 10 °C
Operating temperature Max 40 °C
Storage temperature MIN -10 °C
Storage temperature MAX 80 °C
Temperature coefficient 0.15 µm/°C
Compatibility Mahr half-bridge
Dimensions a 85.6 mm | b 53.3 mm | c 98.6 mm | d 125 mm |



Dimensional drawing 1

Đầu đo Millimar P1300 MA không có dây cấp khí
Đầu đo Millimar P1300 MA không có dây cấp khí

Millimar P1300 MA without cable

Art. no. 4400182

Inductive probe Millimar P1300 MA without cable
Compatibility: Mahr half-bridge
Measuring range mm: ± 2 mm
Vacuum lifter (standard option)
Measuring force (N): 0,75 N +/- 0,15 N
Package contains: test certificate, instruction manual, spanner for preliminary stroke setting, hose connector for compressed air

  • Mahr compatibility
  • Proven Mahr half-bridge technology
  • Very easy to service: cables and probes can be separated via the plug-in connector
  • Easy to convert to pneumatic lifting
  • Measuring pin mounted in rotary stroke bearing
  • Chemical resistance data: resistant to oil, gasoline, water and aliphatic compounds. Moderately resistant to acids, bases, solvents and ozone
Millimar P1300 MA without cable | Art. no. 4400182
Measuring range from -2 mm
Measuring range up to 2 mm
Product type P1300 MA without cable
Distance of lower stop MIN -2.2 mm
Distance of lower stop MAX 0 mm
Distance of upper stop MIN 2.2 mm
Distance of upper stop MAX 4.4 mm
Lifter / retraction Vacuum lifter (standard option)
Measuring force (N) 0,75 N +/- 0,15 N
Increase in measuring force 0,3 N/mm
Sensitivity deviation 0.3 %
Repeatability fw (µm) 0.1 µm
Measuring value hysteresis fu (µm) 0.5 µm
Linearity deviation within +/- 0,5 mm 0.4 µm
Linearity deviation within +/- 1,0 mm 1.5 µm
Linearity deviation within +/- 2,0 mm 3 µm
IP protection category IP 64
Operating temperature Min 10 °C
Operating temperature Max 40 °C
Storage temperature MIN -10 °C
Storage temperature MAX 80 °C
Temperature coefficient 0.15 µm/°C
Compatibility Mahr half-bridge
Dimensions a 85.6 mm | b 53.3 mm | c 98.6 mm | d 125 mm |

 Dimensional drawing 1

Đầu đo Millimar P1300 MA
Đầu đo Millimar P1300 MA

Millimar P1300 MA

Art. no. 4400180

Inductive probe Millimar P1300 MA
Compatibility: Mahr half-bridge
Measuring range mm: ± 2 mm
Vacuum lifter (standard option)
Measuring force (N): 0,75 N +/- 0,15 N
Package contains: test certificate, instruction manual, spanner for preliminary stroke setting, hose connector for compressed air

  • Mahr compatibility
  • Proven Mahr half-bridge technology
  • Very easy to service: cables and probes can be separated via the plug-in connector
  • Easy to convert to pneumatic lifting
  • Measuring pin mounted in rotary stroke bearing
  • Chemical resistance data: resistant to oil, gasoline, water and aliphatic compounds. Moderately resistant to acids, bases, solvents and ozone
Millimar P1300 MA | Art. no. 4400180
Measuring range from -2 mm
Measuring range up to 2 mm
Product type P1300 MA
Distance of lower stop MIN -2.2 mm
Distance of lower stop MAX 0 mm
Distance of upper stop MIN 2.2 mm
Distance of upper stop MAX 4.4 mm
Lifter / retraction Vacuum lifter (standard option)
Measuring force (N) 0,75 N +/- 0,15 N
Increase in measuring force 0,3 N/mm
Sensitivity deviation 0.3 %
Repeatability fw (µm) 0.1 µm
Measuring value hysteresis fu (µm) 0.5 µm
Linearity deviation within +/- 0,5 mm 0.4 µm
Linearity deviation within +/- 1,0 mm 1.5 µm
Linearity deviation within +/- 2,0 mm 3 µm
IP protection category IP 64
Cable length 2.5 m
Operating temperature Min 10 °C
Operating temperature Max 40 °C
Storage temperature MIN -10 °C
Storage temperature MAX 80 °C
Temperature coefficient 0.15 µm/°C
Compatibility Mahr half-bridge
Dimensions a 85.6 mm | b 53.3 mm | c 98.6 mm | d 125 mm |



Dimensional drawing 1

Bộ xử lý tín hiệu đo computer Millimar C 1750 PC Bộ xử lý tín hiệu đo computer Millimar C 1750 PC
Bộ xử lý tín hiệu đo computer Millimar C 1750 PC

Millimar C 1750 PC

Art. no. 5312870

Measuring computer Millimar C 1750 PC

  • Robust 10.1" touch PC with i5 processor
  • 8GB memory, industrial 256GB SSD
  • IP65 front housing
  • Interactive, touch-sensitive software
  • Very simple and intuitive to use
  • User-friendly creation of measuring tasks
  • Access to predefined wizards for maximum ease of use
  • Management of measuring tasks (save and load function)
  • Measuring task linked to images or drawings
  • Static and dynamic recording of measuring values
  • Supported by graphical operating elements
  • Live visualization of measuring values
  • Simultaneous display of 128 digital or analog measurement values
  • The Millimar N 1700 modules support a wide range of inductive measuring probes as well as Mahr instruments with a data interface
  • Connection of Mahr measuring technologies via Integrated Wireless
  • Data export to MS Excel or in qs-Stat format (dfq or dfx/dfd format)
  • Password-protected user levels (3 levels)
  • Online help (operating instructions) can be accessed directly from the software


Millimar Cockpit software incl. 10,1" Touch-PC, preinstalled Windows 10 IoT "Value", Mahr license key, Recovery-Stick 16 GB, operating instructions (online help), power source, VESA 100 standard stand

  • Robust 10.1" touch PC with i5 processor
  • 8GB memory, industrial 256GB SSD
  • IP65 fron housing
  • Interactive, touch-sensitive software
  • Very simple and intuitive to use
  • User-friendly creation of measuring tasks
  • Access to predefined wizards for maximum ease of use
  • Management of measuring tasks (save and load function)
  • Measuring task linked to images or drawings
  • Static and dynamic recording of measuring values
  • Supported by graphical operating elements
  • Live visualization of measuring values
  • Simultaneous display of 128 digital or analog measurement values
  • The Millimar N 1700 modules support a wide range of inductive measuring probes as well as Mahr instruments with a data interface
  • Connection of Mahr measuring technologies via Integrated Wireless
  • Data export to MS Excel or in qs-Stat format (dfq or dfx/dfd format)
  • Password-protected user levels (3 levels)
  • Online help (operating instructions) can be accessed directly from the software
Millimar C 1750 PC | Art. no. 5312870
Display Vertical bar graph
Horizontal bar graph
Analog display or circular scale
Digital display
Any combination of display types can be chosen for each feature
Product type C 1750 PC
Battery type CR 2032 (3V Lithium)
Range of analog display µm ± 10000 , ± 5000 , ± 2000 , ± 1000 , ± 500 , ± 200 , ± 100 , ± 50 , ± 20 , ± 10 , tolerance related
Range of analog display inches ± .5" , ± .2" , ± .1'' , ± .05" , ± .02" , ± .01'' , ± .005" , ± .002" , ± .001'' , ± .0005" , tolerance related
Resolution µm 0,01
Tolerance display Upper and lower tolerance limit (per feature)
Upper and lower warning limit (per feature)
Compatibility USB , Integrated wireless , Millimar N 1700
Measuring combination Predefined formula templates for standard features
Links entered via comprehensive formula editor
Features 128
Dynamic functions Max, Min, Max-Min, Max+Min
Classification Max. 20 classes
Hardware interfaces 4x USB 3.0 , 2x COM port Full-PIN (RS232/485; 5V/12V) , 2x COM 2x COM port 3-PIN (RX, TX, GND; RS232/485 switchable) , 2× 10/100/1000Mbit RJ45 Ports; 1x W-LAN connector , Display port , HDMI
Control inputs via N 1704 I/O
Control outputs via N 1704 I/O
Energy supply 100-240V ACDC active switching; 12V DC-Out
Power consumption 30 Watt
IP protection category IP 65 (Front Panel)
Relative humidity non-condensing 90 %
Operating temperature Min -10 °C
Operating temperature Max 60 °C
Product weight 2.3 kg

Application

Convenient measuring computer with smart and universal software for complex measuring tasks in the manufacturing sector

Bộ khuếch đại tín hiệu dạng cột Millimar S 1840 F
Bộ khuếch đại tín hiệu dạng cột Millimar S 1840 F

Millimar S 1840 F

Art. no. 5318402

Compact column amplifier Millimar S 1840 F
Compatibility: Federal
Probe inputs: 2
Range of digital display mm: ± 2000, ± 10000
Data interface: RS-232C, wireless
Energy supply: Power source, 230 V/115 V; 50/60 Hz
Package contains: instruction manual, power source


  • Easy-to-read 3-color analog display
  • For measurements in conjunction with electronic length measuring probes (e. g. Mahr P2004)
  • 2 inputs for inductive probes (compatible with Mahr or Mahr Federal probes)
  • Extensive calculation of input signals: ±A, ±B and all combinations
  • Dynamic measuring functions: Max, Min, Max-Min, Average
  • Programmable via built-in membrane keypad or RS232 interface using configuration software
  • If the programmable warning and tolerance limits are exceeded, the segments change color from green to yellow or red.
  • Backlit, two-line LCD for displaying measuring values, help texts and units of measurement
  • 1 analog output
  • 3 digital inputs (e.g. measurement start, master measurement)
  • 3 digital outputs for good – reject – rework, measuring time
Millimar S 1840 F | Art. no. 5318402
Display 101 LED elements, 3 colors
Product type S 1840 F
Scale reading ± .0003; .001; .003; .01; .03; .1; .3 inch
Range and text display 7-point LCD, 14 segment, alphanumeric
Digital display 7 point LCD, 7 segment
Range of digital display µm ± 2000 , ± 10000
Range of analog display µm ± 10 , ± 30 , ± 100 , ± 300 , ± 1000 , ± 3000 , ± 10000 , tolerance related
Range of analog display inches ± .0003'' , ± .001'' , ± .003'' , ± .01'' , ± .03'' , ± .1'' , ± .3'' , tolerance related
Resolution µm 0,01 , 0,1
Tolerance display via color changes in the analog display
Measuring range, inductive probe ± 200 , ± 2000
Probe inputs 2
Compatibility Federal
Measuring combination +A, -A, +B, -B, A+B, +A-B, -A+B, -A-B
Features 2
Programs 2
Test steps 1
Dynamic functions Max, Min, Max-Min, (Max+Min)/2, Mean
Configuration PC, keyboard
Response time digital display 0.3 s
Response time analog display 0.02 s
Response time control outputs 0.02 s
Response time analog output 0.02 s
Response time measuring value memory 0.008 s
Data transmission rate 40 Hz
Error limit, digital display 0,3% (min. 0,2 μm)
Error limit, analog display 1% (101 LEDs)
Data interface RS-232C , wireless
Hardware interfaces RS-232C , I/O interface
Control inputs 3 optocoupler inputs, 24 V, 10 mA
Control outputs 3 optocoupler outputs, 24 V, 100 mA
Analog output max. +/- 5V, Empfindlichkeit einstellbar
Energy supply Power source , 230 V/115 V; 50/60 Hz
Power consumption 12 VA
IP protection category IP 42
Relative humidity non-condensing 80 %
Working temperature MIN 0 °C
Working temperature MAX 45 °C
Operating temperature Min 0 °C
Operating temperature Max 40 °C
Temperature coefficient 0.005 %/°C
Product weight 1.6 kg

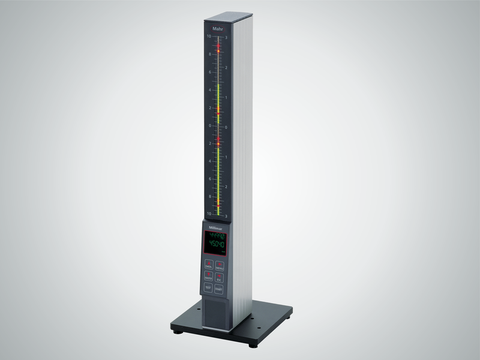

Bộ khuếch đại tín hiệu dạng cột Millimar S 1840 M
Bộ khuếch đại tín hiệu dạng cột Millimar S 1840 M

Millimar S 1840 M

Art. no. 5318400

Compact column amplifier Millimar S 1840 M
Compatibility: Mahr
Probe inputs: 2
Range of digital display mm: ± 2000, ± 10000
Data interface: RS-232C, wireless
Energy supply: Power source, 230 V/115 V; 50/60 Hz
Package contains: instruction manual, power source

  • Easy-to-read 3-color analog display
  • For measurements in conjunction with electronic length measuring probes (e. g. Mahr P2004)
  • 2 inputs for inductive probes (compatible with Mahr or Mahr Federal probes)
  • Extensive calculation of input signals: ±A, ±B and all combinations
  • Dynamic measuring functions: Max, Min, Max-Min, Average
  • Programmable via built-in membrane keypad or RS232 interface using configuration software
  • If the programmable warning and tolerance limits are exceeded, the segments change color from green to yellow or red.
  • Backlit, two-line LCD for displaying measuring values, help texts and units of measurement
  • 1 analog output
  • 3 digital inputs (e.g. measurement start, master measurement)
  • 3 digital outputs for good – reject – rework, measuring time
Millimar S 1840 M | Art. no. 5318400
Display 101 LED elements, 3 colors
Product type S 1840 M
Scale reading ± .0003; .001; .003; .01; .03; .1; .3 inch
Range and text display 7-point LCD, 14 segment, alphanumeric
Digital display 7 point LCD, 7 segment
Range of digital display µm ± 2000 , ± 10000
Range of analog display µm ± 10 , ± 30 , ± 100 , ± 300 , ± 1000 , ± 3000 , ± 10000 , tolerance related
Range of analog display inches ± .0003'' , ± .001'' , ± .003'' , ± .01'' , ± .03'' , ± .1'' , ± .3'' , tolerance related
Resolution µm 0,01 , 0,1
Tolerance display via color changes in the analog display
Measuring range, inductive probe ± 200 , ± 2000
Probe inputs 2
Compatibility Mahr
Measuring combination +A, -A, +B, -B, A+B, +A-B, -A+B, -A-B
Features 2
Programs 2
Test steps 1
Dynamic functions Max, Min, Max-Min, (Max+Min)/2, Mean
Configuration PC, keyboard
Response time digital display 0.3 s
Response time analog display 0.02 s
Response time control outputs 0.02 s
Response time analog output 0.02 s
Response time measuring value memory 0.008 s
Data transmission rate 40 Hz
Error limit, digital display 0,3% (min. 0,2 μm)
Error limit, analog display 1% (101 LEDs)
Data interface RS-232C , wireless
Hardware interfaces RS-232C , I/O interface
Control inputs 3 optocoupler inputs, 24 V, 10 mA
Control outputs 3 optocoupler outputs, 24 V, 100 mA
Analog output max. ± 5 V, Empfindlichkeit einstellbar
Energy supply Power source , 230 V/115 V; 50/60 Hz
Power consumption 12 VA
IP protection category IP 42
Relative humidity non-condensing 80 %
Working temperature MIN 0 °C
Working temperature MAX 45 °C
Operating temperature Min 0 °C
Operating temperature Max 40 °C
Temperature coefficient 0.005 %/°C
Product weight 1.6 kg

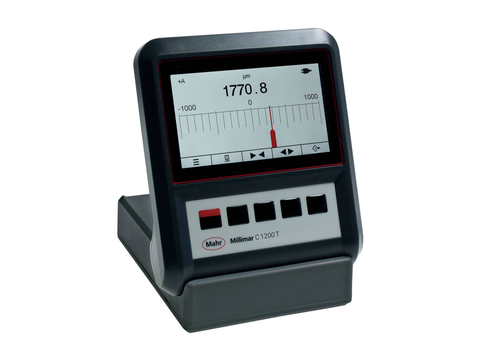

Bộ khuếch đại tín hiệu cỡ nhỏ Millimar C1202 T
Bộ khuếch đại tín hiệu cỡ nhỏ Millimar C1202 T

Millimar C 1200 T

Art. no. 5312011

Compact amplifier Millimar C 1200 T
Range of analog display mm:
Range of digital display mm: ± 5000
Compatibility: Tesa
Probe inputs: 1
Data interface: Opto RS-232C, USB, Digimatic, wireless
Energy supply: Power source, 230 V/115 V; 50/60 Hz, battery operation
Package contains: power source, instruction manual

Millimar C 1200 T | Art. no. 5312011
Display TFT color display, 110 mm (4.3"), 480 x 272 pixels
Product type C 1200 T
Battery type 5 x LR6 (1,5V Mignon AA) possible
Range of digital display µm ± 5000
Range of digital display inch ± .19"
Range of analog display µm ± 5000 , ± 2000 , ± 1000 , ± 300 , ± 100 , ± 30 , ± 10 , ± 3
Range of analog display inches ± .19" , ± .07" , ± .03'' , ± .01'' , ± .003'' , ± .001'' , ± .0003" , ± .0001''
Resolution µm 0,1
Graduation mm 500 , 200 , 100 , 20 , 10 , 2 , 1 , 0,2
Graduation value inches .019" , .007" , .002" , .001" , .0002'' , .0001'' , .00002'' , .00001''
Probe inputs 1
Compatibility Tesa
Measuring combination +A, -A
Features 1
Test steps 1
Dynamic functions Max, Min, Max-Min
Configuration Keyboard
Refresh rate 40 fps
Data transmission rate 30 Hz
Error limit, digital display 0.3% (min. 0.2 µm)
Error limit, analog display 0.25% of the end scale value / 0.3% of the displayed value
Data interface Opto RS-232C , USB , Digimatic , wireless
Hardware interfaces Opto RS-232C , USB , Digimatic , wireless
Energy supply Power source , 230 V/115 V; 50/60 Hz , battery operation
IP protection category IP 42
Working temperature MIN 10 °C
Working temperature MAX 40 °C
Operating temperature Min 0 °C
Operating temperature Max 40 °C
Product weight 0.496 kg

Application

Millimar C 1200, now in 2 versions

  • M for inductive probes with the compatibility M
  • T for inductive probes with the compatibility T

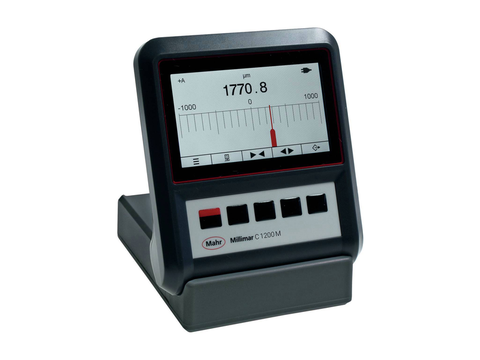

Bộ khuếch đại tín hiệu cỡ nhỏ Millimar C1202M
Bộ khuếch đại tín hiệu cỡ nhỏ Millimar C1202M

Millimar C 1200 M

Art. no. 5312012

Compact amplifier Millimar C 1200 M
Range of analog display mm:
Range of digital display mm: ± 5000
Compatibility: Mahr
Probe inputs: 1
Data interface: Opto RS-232C, USB, Digimatic, wireless
Energy supply: Power source, 230 V/115 V; 50/60 Hz, battery operation
Package contains: power source, instruction manual

  • High-resolution, high-contrast color display
  • Fully adjustable display for ideal viewing angle
  • Extremely easy to operate
  • Suitable for mains or battery operation
  • With battery operation also suitable for mobile use
  • Compact housing
  • Suitable for wall mounting
Millimar C 1200 M | Art. no. 5312012
Display TFT color display, 110 mm (4.3"), 480 x 272 pixels
Product type C 1200 M
Battery type 5 x LR6 (1,5V Mignon AA) possible
Range of digital display µm ± 5000
Range of digital display inch ± .19"
Range of analog display µm ± 5000 , ± 2000 , ± 1000 , ± 300 , ± 100 , ± 30 , ± 10 , ± 3
Range of analog display inches ± .19" , ± .07" , ± .03'' , ± .01'' , ± .003'' , ± .001'' , ± .0003" , ± .0001''
Resolution µm 0,1
Graduation mm 500 , 200 , 100 , 20 , 10 , 2 , 1 , 0,2
Graduation value inches .019" , .007" , .002" , .001" , .0002'' , .0001'' , .00002'' , .00001''
Probe inputs 1
Compatibility Mahr
Measuring combination +A, -A
Features 1
Test steps 1
Dynamic functions Max, Min, Max-Min
Configuration Keyboard
Refresh rate 40 fps
Data transmission rate 30 Hz
Error limit, digital display 0.3% (min. 0.2 µm)
Error limit, analog display 0.25% of the end scale value / 0.3% of the displayed value
Data interface Opto RS-232C , USB , Digimatic , wireless
Hardware interfaces Opto RS-232C , USB , Digimatic , wireless
Energy supply Power source , 230 V/115 V; 50/60 Hz , battery operation
IP protection category IP 42
Working temperature MIN 10 °C
Working temperature MAX 40 °C
Operating temperature Min 0 °C
Operating temperature Max 40 °C
Product weight 0.496 kg

Applications

Millimar C 1200, now in 2 versions

  • M for inductive probes with the compatibility M

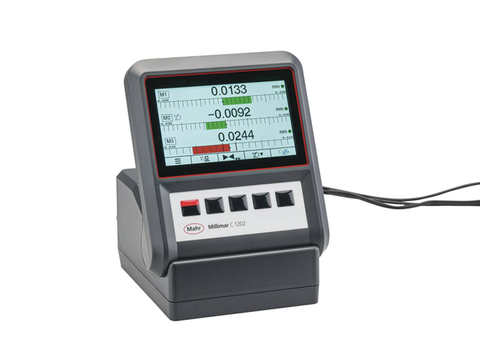

  • T for inductive probes with the compatibility T
Bộ khuếch đại tín hiệu cỡ nhỏ Millimar C1202
Bộ khuếch đại tín hiệu cỡ nhỏ Millimar C1202

Millimar C 1202

Art. no. 5312024

Compact amplifier Millimar C 1202
Features: 3
Connect different sensors by way of N1700 measuring modules
Range of analog display mm: ± 5, ± 2, ± 1, ± 0,3, ± 0,1, ± 0,03, ± 0,01, ± 0,003
Range of digital display mm: ± 999,9999
Data interface: USB, Digimatic
Energy supply: Power source, 230 V/115 V; 50/60 Hz
Package contains: power source, micro SD memory card, instruction manual, without N 1700 module (necessary optional accessory)

  • Versatility for a wide range of measuring tasks
  • Interchangeable N 1700 modules as measuring channels for inductive and
    incremental probes or for pneumatic measuring equipment.
  • Perfect display thanks to high resolution and high contrast color screen
  • Fully adjustable display for ideal viewing angle
  • Variable display of measuring values, either as a number, pointer or bars
  • 1 - 3 features can be displayed at once
  • Extremely easy to operate
  • Programmable switching input to control the measuring routine
  • Flexible, multiple measuring tasks can be stored on the memory card.
  • Compact housing
  • Suitable for wall mounting
Millimar C 1202 | Art. no. 5312024
Display TFT color display, 110 mm (4.3"), 480 x 272 pixels
Product type C 1202
Range of digital display µm ± 999 999.9
Range of analog display µm ± 5000 , ± 2000 , ± 1000 , ± 300 , ± 100 , ± 30 , ± 10 , ± 3
Resolution µm 0,01 , 0,1 , 1
Graduation mm 500 , 200 , 100 , 20 , 10 , 2 , 1 , 0,2
Measuring combination +A, -A, +B, -B, A+B, +A-B, -A+B, -A-B
Features 3
Test steps 1
Dynamic functions Max, Min, TIR (Max-Min), (Max+Min)/2, Average
Statistical functions Length, Angle
Configuration Keyboard
Refresh rate 30 fps
Data transmission rate 30 Hz
Error limit, digital display 0.3% (min. 0.2 μm);
0.3% (min. 0.04 μm)*
* (with N 1702 M-HR)
Error limit, analog display 0.25% of the end scale value / 0.3% of the displayed value
Data interface USB , Digimatic
Hardware interfaces USB , Control input , RS-485 , Micro SD slot for SD / SDHC cards up to 32 GB
Control inputs Control input programmable
(functions and function sequences)
Energy supply Power source , 230 V/115 V; 50/60 Hz
IP protection category IP 42
Working temperature MIN 10 °C
Working temperature MAX 35 °C
Operating temperature Min 0 °C
Operating temperature Max 40 °C

Variety of applications for our products

Indicating instrument for precise length measurements

  • for connecting different sensors by way of N 1700 measuring modules
  • for connecting up to 2 measuring sensors

Please note:
N 1700 measuring modules are necessary additional accessories

Scroll To Top

zalo
