DỤNG CỤ CẮT YG-1
Được thành lập vào năm 1981, YG-1 đã phát triển thành một công ty vững mạnh và vững chắc được công nhận trên toàn cầu trong ngành công cụ cắt. Với nguồn nhân lực vượt trội và công nghệ vượt trội, YG-1 luôn hướng tới tương lai.

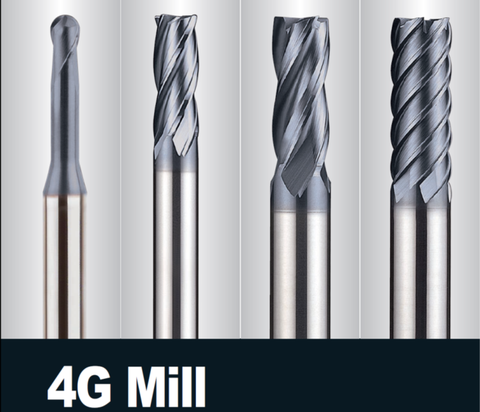

Dao phay trước nhiệt luyện 4G
• Đường kính từ ɸ0.03-ɸ25 mm
• Dao hợp kim cỡ hạt nano, chịu mài mòn tốt
• Độ bóng bề mặt cao
• Gia công vật liệu thép trước nhiệt luyện độ cứng đến HRc55
• Dùng gia công thô, bán tinh đến tính
• Có thể gia công được cho gang
EDP.NO. YOUR CODE NO, DESCRIPTION DIMENSION
GM99926569 4G MILL 2FL 30deg. Helix Special Taper E/M(TiAlN) 0.5X4X4X45(0.5˚)
GM99926570 4G MILL 2FL 30deg. Helix Special Taper E/M(TiAlN) 0.6X4X4X45(0.5˚)
GM99926571 4G MILL 2FL 30deg. Helix Special Taper E/M(TiAlN) 0.5X4X4X45(1˚)
GM99926572 4G MILL 2FL 30deg. Helix Special Taper E/M(TiAlN) 0.6X4X4X45(1˚)
GM99926573 4G MILL 2FL 30deg. Helix Special Taper E/M(TiAlN) 0.5X4X4X45(1.5˚)
GM99926574 4G MILL 2FL 30deg. Helix Special Taper E/M(TiAlN) 0.6X4X4X45(1.5˚)
GM99926575 4G MILL 2FL 30deg. Helix Special Taper E/M(TiAlN) 0.5X4X4X45(2˚)
GM99926576 4G MILL 2FL 30deg. Helix Special Taper E/M(TiAlN) 0.6X4X4X45(2˚)
GM99926577 4G MILL 2FL 30deg. Helix Special Taper E/M(TiAlN) 0.5X4X4X45(3˚)
GM99926578 4G MILL 2FL 30deg. Helix Special Taper E/M(TiAlN) 0.6X4X4X45(3˚)
GM99926579 4G MILL 2FL 30deg. Helix Special Taper E/M(TiAlN) 0.8X4X6X45(3˚)
GM99926598 4G MILL 2FL 30deg. Helix Special Taper E/M(TiAlN) 1X4X8X50(15˚)
GM99926599 4G MILL 2FL 30deg. Helix Special Taper E/M(TiAlN) 1.5X5X10X50(15˚)
GM99926603 4G MILL 4FL 30deg. Helix Special Taper E/M(TiAlN) 6X6X20X65(0.5˚)
GM99926604 4G MILL 4FL 30deg. Helix Special Taper E/M(TiAlN) 6X6X20X65(1.5˚)
GM99926605 4G MILL 4FL 30deg. Helix Special Taper E/M(TiAlN) 6X6X20X65(2˚)
GM99926606 4G MILL 4FL 30deg. Helix Special Taper E/M(TiAlN) 6X6X19X65(3˚)
GM99926607 4G MILL 4FL 30deg. Helix Special Taper E/M(TiAlN) 6X8X22X75(5˚)
SEM84500101E 4G MILL 2FL 30deg. Helix Rib E/M 0.1X4X0.15(1)X40
SEM845002015E 4G MILL 2FL 30deg. Helix Rib E/M 0.2X4X0.3(1.5)X40
SEM84500202E 4G MILL 2FL 30deg. Helix Rib E/M 0.2X4X0.3(2)X40
SEM845003015E 4G MILL 2FL 30deg. Helix Rib E/M 0.3X4X0.5(1.5)X40
SEM84500301E 4G MILL 2FL 30deg. Helix Rib E/M 0.3X4X0.5(1)X40
SEM84500303E 4G MILL 2FL 30deg. Helix Rib E/M 0.3X4X0.5(3)X40
SEM84500305E 4G MILL 2FL 30deg. Helix Rib E/M 0.3X4X0.5(5)X40
SEM845004025E 4G MILL 2FL 30deg. Helix Rib E/M 0.4X4X0.6(2.5)X40
SEM84500402E 4G MILL 2FL 30deg. Helix Rib E/M 0.4X4X0.6(2)X40
SEM84500404E 4G MILL 2FL 30deg. Helix Rib E/M 0.4X4X0.6(4)X40
SEM84500405E 4G MILL 2FL 30deg. Helix Rib E/M 0.4X4X0.6(5)X40
SEM845005025E 4G MILL 2FL 30deg. Helix Rib E/M 0.5X4X0.7(2.5)X45
SEM84500502E 4G MILL 2FL 30deg. Helix Rib E/M 0.5X4X0.7(2)X45
SEM84500503 4G MILL 2FL 30deg. Helix Rib E/M 0.5X4X0.7(3)X45
SEM84500504E 4G MILL 2FL 30deg. Helix Rib E/M 0.5X4X0.7(4)X45
SEM84500505E 4G MILL 2FL 30deg. Helix Rib E/M 0.5X4X0.7(5)X45
SEM84500506E 4G MILL 2FL 30deg. Helix Rib E/M 0.5X4X0.7(6)X45
SEM84500602E 4G MILL 2FL 30deg. Helix Rib E/M 0.6X4X0.9(2)X45
SEM84500603E 4G MILL 2FL 30deg. Helix Rib E/M 0.6X4X0.9(3)X45
SEM84500604E 0 4G MILL 2FL 30deg. Helix Rib E/M 0.6X4X0.9(4)X45
SEM84500605E 4G MILL 2FL 30deg. Helix Rib E/M 0.6X4X0.9(5)X45
SEM84500606E 4G MILL 2FL 30deg. Helix Rib E/M 0.6X4X0.9(6)X45
SEM84500608E 0 4G MILL 2FL 30deg. Helix Rib E/M 0.6X4X0.9(8)X45
SEM84500704E 4G MILL 2FL 30deg. Helix Rib E/M 0.7X4X1.2(4)X45
SEM84500803E 4G MILL 2FL 30deg. Helix Rib E/M 0.8X4X1.2(3)X45
SEM84500804E 4G MILL 2FL 30deg. Helix Rib E/M 0.8X4X1.2(4)X45
SEM84500806 4G MILL 2FL 30deg. Helix Rib E/M 0.8X4X1.2(6)X45
SEM84500806E 4G MILL 2FL 30deg. Helix Rib E/M 0.8X4X1.2(6)X45
SEM84501002E 4G MILL 2FL 30deg. Helix Rib E/M 1X4X1.5(2)X50
SEM84501003E 4G MILL 2FL 30deg. Helix Rib E/M 1X4X1.5(3)X50
SEM84501004E 4G MILL 2FL 30deg. Helix Rib E/M 1X4X1.5(4)X50
SEM84501006E 4G MILL 2FL 30deg. Helix Rib E/M 1X4X1.5(6)X50
SEM84501007E 4G MILL 2FL 30deg. Helix Rib E/M 1X4X1.5(7)X50
SEM84501008E 4G MILL 2FL 30deg. Helix Rib E/M 1X4X1.5(8)X50
SEM84501010E 4G MILL 2FL 30deg. Helix Rib E/M 1X4X1.5(10)X50
SEM84501016E 4G MILL 2FL 30deg. Helix Rib E/M 1X4X1.5(16)X50
SEM84501020E 4G MILL 2FL 30deg. Helix Rib E/M 1X4X1.5(20)X50
SEM84501030E 4G MILL 2FL 30deg. Helix Rib E/M 1X4X1.5(30)X70
SEM84501504E 4G MILL 2FL 30deg. Helix Rib E/M 1.5X4X2.3(4)X50
SEM84501506E 4G MILL 2FL 30deg. Helix Rib E/M 1.5X4X2.3(6)X50
SEM84501507E 4G MILL 2FL 30deg. Helix Rib E/M 1.5X4X2.3(7)X50
SEM84501508E 4G MILL 2FL 30deg. Helix Rib E/M 1.5X4X2.3(8)X50
SEM84501510E 4G MILL 2FL 30deg. Helix Rib E/M 1.5X4X2.3(10)X50
SEM84501512E 4G MILL 2FL 30deg. Helix Rib E/M 1.5X4X2.3(12)X50
SEM84501514E 4G MILL 2FL 30deg. Helix Rib E/M 1.5X4X2.3(14)X50
SEM84502006E 4G MILL 2FL 30deg. Helix Rib E/M 2X4X3(6)X50
SEM84502008E 4G MILL 2FL 30deg. Helix Rib E/M 2X4X3(8)X50
SEM84502010E 4G MILL 2FL 30deg. Helix Rib E/M 2X4X3(10)X50
SEM84502012E 4G MILL 2FL 30deg. Helix Rib E/M 2X4X3(12)X50
SEM84502016E 4G MILL 2FL 30deg. Helix Rib E/M 2X4X3(16)X50
SEM84502020E 4G MILL 2FL 30deg. Helix Rib E/M 2X4X3(20)X50
SEM84502026E 4G MILL 2FL 30deg. Helix Rib E/M 2X4X3(26)X60
SEM84502045E 0 4G MILL 2FL 30deg. Helix Rib E/M 2X4X3(45)X90
SEM84503010 4G MILL 2FL 30deg. Helix Rib E/M 3X6X4.5(10)X50
SEM84503010E 4G MILL 2FL 30deg. Helix Rib E/M 3X6X4.5(10)X50
SEM84503012E 4G MILL 2FL 30deg. Helix Rib E/M 3X6X4.5(12)X50
SEM84503016E 0 4G MILL 2FL 30deg. Helix Rib E/M 3X6X4.5(16)X60
SEM84503020E 4G MILL 2FL 30deg. Helix Rib E/M 3X6X4.5(20)X60
SEM84503026E 4G MILL 2FL 30deg. Helix Rib E/M 3X6X4.5(26)X65
SEM84504016E 0 4G MILL 2FL 30deg. Helix Rib E/M 4X6X6(16)X60
SEM84504020E 4G MILL 2FL 30deg. Helix Rib E/M 4X6X6(20)X60
SEM84504026E 0 4G MILL 2FL 30deg. Helix Rib E/M 4X6X6(26)X65
SEM84600201E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.2X4X0.2(1)X40
SEM846003015E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.3X4X0.3(1.5)X40
SEM84600302E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.3X4X0.3(2)X40
SEM846004015E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.4X4X0.4(1.5)X40
SEM84600402E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.4X4X0.4(2)X40
SEM846005015E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.5X4X0.5(1.5)X45
SEM84600503E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.5X4X0.5(3)X45
SEM84600504E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.5X4X0.5(4)X45
SEM84600506E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.5X4X0.5(6)X45
SEM84600602E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.6X4X0.6(2)X45
SEM84600603E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.6X4X0.6(3)X45
SEM84600604E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.6X4X0.6(4)X45
SEM84600608E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.6X4X0.6(8)X45
SEM84600802E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.8X4X0.8(2)X45
SEM84600803E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.8X4X0.8(3)X45
SEM84600804E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.8X4X0.8(4)X45
SEM84600806E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.8X4X0.8(6)X45
SEM84600808E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.8X4X0.8(8)X45
SEM846010036SE 4G MILL 2FL 30deg. Helix Rib Ball E/M 1X6X1(3)X50
SEM84601004E 4G MILL 2FL 30deg. Helix Rib Ball E/M 1X4X1(4)X50
SEM84601006E 4G MILL 2FL 30deg. Helix Rib Ball E/M 1X4X1(6)X50
SEM84601008E 4G MILL 2FL 30deg. Helix Rib Ball E/M 1X4X1(8)X50
SEM84601010E 4G MILL 2FL 30deg. Helix Rib Ball E/M 1X4X1(10)X50
SEM84601016 4G MILL 2FL 30deg. Helix Rib Ball E/M 1X4X1(16)X50
SEM84601020E 4G MILL 2FL 30deg. Helix Rib Ball E/M 1X4X1(20)X50
SEM84601206E 4G MILL 2FL 30deg. Helix Rib Ball E/M 1.2X4X1.2(6)X50
SEM84601506E 4G MILL 2FL 30deg. Helix Rib Ball E/M 1.5X4X1.5(6)X50
SEM84601508E 4G MILL 2FL 30deg. Helix Rib Ball E/M 1.5X4X1.5(8)X50
SEM84601510 4G MILL 2FL 30deg. Helix Rib Ball E/M 1.5X4X1.5(10)X50
SEM84601510E 4G MILL 2FL 30deg. Helix Rib Ball E/M 1.5X4X1.5(10)X50
SEM84601516E 4G MILL 2FL 30deg. Helix Rib Ball E/M 1.5X4X1.5(16)X50
SEM846020046SE 4G MILL 2FL 30deg. Helix Rib Ball E/M 2X6X2(4)X50
SEM84602006E 4G MILL 2FL 30deg. Helix Rib Ball E/M 2X4X2(6)X50
SEM84602008E 4G MILL 2FL 30deg. Helix Rib Ball E/M 2X4X2(8)X50
SEM84602010E 4G MILL 2FL 30deg. Helix Rib Ball E/M 2X4X2(10)X50
SEM84602012E 4G MILL 2FL 30deg. Helix Rib Ball E/M 2X4X2(12)X50
SEM84602014E 4G MILL 2FL 30deg. Helix Rib Ball E/M 2X4X2(14)X50
SEM84602016 4G MILL 2FL 30deg. Helix Rib Ball E/M 2X4X2(16)X50
SEM84602016E 4G MILL 2FL 30deg. Helix Rib Ball E/M 2X4X2(16)X50
SEM84602020E 4G MILL 2FL 30deg. Helix Rib Ball E/M 2X4X2(20)X50
SEM84602045E 4G MILL 2FL 30deg. Helix Rib Ball E/M 2X4X2(45)X90
SEM84603008E 4G MILL 2FL 30deg. Helix Rib Ball E/M 3X6X3(8)X50
SEM84603010E 4G MILL 2FL 30deg. Helix Rib Ball E/M 3X6X3(10)X50
SEM84603012E 4G MILL 2FL 30deg. Helix Rib Ball E/M 3X6X3(12)X50
SEM84603016E 4G MILL 2FL 30deg. Helix Rib Ball E/M 3X6X3(16)X60
SEM84603020E 4G MILL 2FL 30deg. Helix Rib Ball E/M 3X6X3(20)X60
SEM84603022E 4G MILL 2FL 30deg. Helix Rib Ball E/M 3X6X3(22)X65
SEM84603030E 4G MILL 2FL 30deg. Helix Rib Ball E/M 3X6X3(30)X70
SEM84603035E 4G MILL 2FL 30deg. Helix Rib Ball E/M 3X6X3(35)X70
SEM84603060E 4G MILL 2FL 30deg. Helix Rib Ball E/M 3X6X3(60)X100
SEM84604008E 4G MILL 2FL 30deg. Helix Rib Ball E/M 4X6X4(8)X50
SEM84604012E 4G MILL 2FL 30deg. Helix Rib Ball E/M 4X6X4(12)X50
SEM84604016E 4G MILL 2FL 30deg. Helix Rib Ball E/M 4X6X4(16)X60
SEM84604020E 4G MILL 2FL 30deg. Helix Rib Ball E/M 4X6X4(20)X60
SEM84604026E 4G MILL 2FL 30deg. Helix Rib Ball E/M 4X6X4(26)X65
SEM84604030E 4G MILL 2FL 30deg. Helix Rib Ball E/M 4X6X4(30)X70
SEM84604040E 4G MILL 2FL 30deg. Helix Rib Ball E/M 4X6X4(40)X80
SEM84604060E 4G MILL 2FL 30deg. Helix Rib Ball E/M 4X6X4(60)X100
SEM84606020090E 4G MILL 2FL 30deg. Helix Rib Ball E/M 6X6X12(20)X90
SEM84606030E 4G MILL 2FL 30deg. Helix Rib Ball E/M 6X6X8(30)X60
SEM84608025100E 4G MILL 2FL 30deg. Helix Rib Ball E/M 8X8X14(25)X100
SEM84608035100E 4G MILL 2FL 30deg. Helix Rib Ball E/M 8X8X14(35)X100
SEM84610030100E 4G MILL 2FL 30deg. Helix Rib Ball E/M 10X10X18(30)X100
SEM84612032110E 4G MILL 2FL 30deg. Helix Rib Ball E/M 12X12X22(32)X110
SEMD98002E 4G MILL 2FL 30deg. Helix Ball E/M 0.2X4X0.4X40
SEMD98003E 4G MILL 2FL 30deg. Helix Ball E/M 0.3X4X0.6X40
SEMD98004E 4G MILL 2FL 30deg. Helix Ball E/M 0.4X4X0.8X40
SEMD98005E 4G MILL 2FL 30deg. Helix Ball E/M 0.5X4X1X40
SEMD98006E 4G MILL 2FL 30deg. Helix Ball E/M 0.6X4X1.2X40
SEMD98008E 4G MILL 2FL 30deg. Helix Ball E/M 0.8X4X1.6X40
SEMD980104SE 4G MILL 2FL 30deg. Helix Ball E/M 1X4X2.5X50
SEMD98010E 4G MILL 2FL 30deg. Helix Ball E/M 1X6X2.5X50
SEMD980154SE 4G MILL 2FL 30deg. Helix Ball E/M 1.5X4X4X50
SEMD98015E 4G MILL 2FL 30deg. Helix Ball E/M 1.5X6X4X50
SEMD980204SE 4G MILL 2FL 30deg. Helix Ball E/M 2X4X5X50
SEMD98020E 4G MILL 2FL 30deg. Helix Ball E/M 2X6X5X50
SEMD98030040E 4G MILL 2FL 30deg. Helix Ball E/M 3X6X4.5X40
SEMD98030100E 4G Mill 2FL 30deg. Helix Ball E/M 3x6x6x100
SEMD98030E 4G MILL 2FL 30deg. Helix Ball E/M 3X6X6X60
SEMD98040050E 4G MILL 2FL 30deg. Helix Ball E/M 4X6X6X50
SEMD98040100E 4G Mill 2FL 30deg. Helix Ball E/M 4x6x8x100
SEMD98040E 4G MILL 2FL 30deg. Helix Ball E/M 4X6X8X70
SEMD98050E 4G MILL 2FL 30deg. Helix Ball E/M 5X6X10X80
SEMD98060050E 4G MILL 2FL 30deg. Helix Ball E/M 6X6X9X50
SEMD98060110E 4G MILL 2FL 30deg. Helix Ball E/M 6X6X12X110
SEMD98060E 4G MILL 2FL 30deg. Helix Ball E/M 6X6X12X90
SEMD98080050E 4G MILL 2FL 30deg. Helix Ball E/M 8X8X12X50
SEMD98080130E 4G MILL 2FL 30deg. Helix Ball E/M 8X8X14X130
SEMD98080150E 4G MILL 2FL 30deg. Helix Ball E/M 8X8X14X150
SEMD98080E 4G MILL 2FL 30deg. Helix Ball E/M 8X8X14X100
SEMD98100060E 4G MILL 2FL 30deg. Helix Ball E/M 10X10X15X60
SEMD98100130E 4G MILL 2FL 30deg. Helix Ball E/M 10X10X18X130
SEMD98100E 4G MILL 2FL 30deg. Helix Ball E/M 10X10X18X100
SEMD98120080E 4G MILL 2FL 30deg. Helix Ball E/M 12X12X18X80
SEMD98120E 4G MILL 2FL 30deg. Helix Ball E/M 12X12X22X110
SEMD9902005E 4G MILL 2FL 30deg. Helix Corner Radius E/M 2(R0.5)X6X6X50
SEMD9902505E 4G MILL 2FL 30deg. Helix Corner Radius E/M 2.5(R0.5)X6X7X60
SEMD9903003E 4G MILL 2FL 30deg. Helix Corner Radius E/M 3(R0.3)X6X8X60
SEMD99040054SE 4G MILL 2FL 30deg. Helix Corner Radius E/M 4(R0.5)X4X10X70
SEMD9904005E 4G MILL 2FL 30deg. Helix Corner Radius E/M 4(R0.5)X6X10X70
SEMD9906005060E 4G MILL 2FL 30deg. Helix Corner Radius E/M 6(R0.5)X6X15X60
SEMD9906005E 4G MILL 2FL 30deg. Helix Corner Radius E/M 6(R0.5)X6X15X90
SEMD9906010E 0 4G MILL 2FL 30deg. Helix Corner Radius E/M 6(R1)X6X15X90
SEMD9908005070E 4G MILL 2FL 30deg. Helix Corner Radius E/M 8(R0.5)X8X20X70
SEMD9908005E 4G MILL 2FL 30deg. Helix Corner Radius E/M 8(R0.5)X8X20X100
SEMD9910005075E 4G MILL 2FL 30deg. Helix Corner Radius E/M 10(R0.5)X10X25X75
SEMD9910005E 4G MILL 2FL 30deg. Helix Corner Radius E/M 10(R0.5)X10X25X100
SEMD9910010E 4G MILL 2FL 30deg. Helix Corner Radius E/M 10(R1)X10X25X100
SEMD9912005080E 4G MILL 2FL 30deg. Helix Corner Radius E/M 12(R0.5)X12X30X80
SEMD9912005E 4G MILL 2FL 30deg. Helix Corner Radius E/M 12(R0.5)X12X30X110
SEME0101002E 4G MILL 4FL 30deg. Helix Corner Radius E/M 1(R0.2)X6X2.5X50
SEME0103002E 4G MILL 4FL Multiple Helix Corner Radius E/M 3(R0.2)X6X8X60
SEME0103005E 4G MILL 4FL Multiple Helix Corner Radius E/M 3(R0.5)X6X8X60
SEME0103010E 4G MILL 4FL Multiple Helix Corner Radius E/M 3(R1)X6X8X60
SEME01040024SE 4G MILL 4FL Multiple Helix Corner Radius E/M 4(R0.2)X4X10X70
SEME0104002E 4G MILL 4FL Multiple Helix Corner Radius E/M 4(R0.2)X6X10X70
SEME0104003E 4G MILL 4FL Multiple Helix Corner Radius E/M 4(R0.3)X6X10X70
SEME01040054SE 4G MILL 4FL Multiple Helix Corner Radius E/M 4(R0.5)X4X10X70
SEME0104005E 4G MILL 4FL Multiple Helix Corner Radius E/M 4(R0.5)X6X10X70
SEME0105005E 4G MILL 4FL Multiple Helix Corner Radius E/M 5(R0.5)X6X13X90
SEME0106003E 4G MILL 4FL Multiple Helix Corner Radius E/M 6(R0.3)X6X15X90
SEME0106005E 4G MILL 4FL Multiple Helix Corner Radius E/M 6(R0.5)X6X15X90
SEME0106010E 4G MILL 4FL Multiple Helix Corner Radius E/M 6(R1)X6X15X90
SEME0108003E 4G MILL 4FL Multiple Helix Corner Radius E/M 8(R0.3)X8X20X100
SEME0108005070E 4G MILL 4FL Multiple Helix Corner Radius E/M 8(R0.5)X8X20X70
SEME0108005E 4G MILL 4FL Multiple Helix Corner Radius E/M 8(R0.5)X8X20X100
SEME0108010070E 4G MILL 4FL Multiple Helix Corner Radius E/M 8(R1)X8X20X70
SEME0110005E 4G MILL 4FL Multiple Helix Corner Radius E/M 10(R0.5)X10X25X100
SEME0110010 4G MILL 4FL Multiple Helix Corner Radius E/M 10(R1)X10X25X100
SEME0110010075E 4G MILL 4FL Multiple Helix Corner Radius E/M 10(R1)X10X25X75
SEME0110010E 4G MILL 4FL Multiple Helix Corner Radius E/M 10(R1)X10X25X100
SEME0112005 4G MILL 4FL Multiple Helix Corner Radius E/M 12(R0.5)X12X30X110
SEME0112005080E 4G MILL 4FL Multiple Helix Corner Radius E/M 12(R0.5)X12X30X80
SEME0112005E 4G MILL 4FL Multiple Helix Corner Radius E/M 12(R0.5)X12X30X110
SEME0112015E 4G MILL 4FL Multiple Helix Corner Radius E/M 12(R1.5)X12X30X110
SEME0112020E 4G MILL 4FL Multiple Helix Corner Radius E/M 12(R2)X12X30X110
SEME35002E 4G MILL 2FL 30deg. Helix E/M 0.2X4X0.4X40
SEME35003E 4G MILL 2FL 30deg. Helix E/M 0.3X4X0.6X40
SEME35004E 4G MILL 2FL 30deg. Helix E/M 0.4X4X0.8X40
SEME35005E 4G MILL 2FL 30deg. Helix E/M 0.5X4X1X40
SEME35006E 4G MILL 2FL 30deg. Helix E/M 0.6X4X1.2X40
SEME350083SE 4G MILL 2FL 30deg. Helix E/M 0.8X3X1.6X40
SEME35008E 4G MILL 2FL 30deg. Helix E/M 0.8X4X1.6X40
SEME350104SE 4G MILL 2FL 30deg. Helix E/M 1X4X2.5X50
SEME350114SE 4G MILL 2FL 30deg. Helix E/M 1.1X4X3X50
SEME350154SE 4G MILL 2FL 30deg. Helix E/M 1.5X4X4X50
SEME350204SE 4G MILL 2FL 30deg. Helix E/M 2X4X6X50
SEME350214SE 4G MILL 2FL 30deg. Helix E/M 2.1X4X6X50
SEME35025E 4G MILL 2FL 30deg. Helix E/M 2.5X6X7X50
SEME350304SE 4G MILL 2FL 30deg. Helix E/M 3X4X8X50
SEME35030E 4G MILL 2FL 30deg. Helix E/M 3X6X8X50
SEME35035E 4G MILL 2FL 30deg. Helix E/M 3.5X6X10X50
SEME35040E 4G MILL 2FL 30deg. Helix E/M 4X6X10X50
SEME35045E 4G MILL 2FL 30deg. Helix E/M 4.5X6X14X50
SEME35050E 4G MILL 2FL 30deg. Helix E/M 5X6X15X60
SEME35055E 4G MILL 2FL 30deg. Helix E/M 5.5X6X15X60
SEME35060E 4G MILL 2FL 30deg. Helix E/M 6X6X15X60
SEME35065E 4G MILL 2FL 30deg. Helix E/M 6.5X8X18X60
SEME35070E 4G MILL 2FL 30deg. Helix E/M 7X8X20X60
SEME35080E 4G MILL 2FL 30deg. Helix E/M 8X8X20X70
SEME35090E 4G MILL 2FL 30deg. Helix E/M 9X10X22X70
SEME35100E 4G MILL 2FL 30deg. Helix E/M 10X10X25X75
SEME35120E 4G MILL 2FL 30deg. Helix E/M 12X12X30X80
SEME36010E 4G MILL 4FL 30deg. Helix E/M 1X6X2.5X50
SEME36015E 4G MILL 4FL 30deg. Helix E/M 1.5X6X4X50
SEME36020E 4G MILL 4FL 30deg. Helix E/M 2X6X6X50
SEME36030E 4G MILL 4FL Multiple Helix E/M 3X6X8X50
SEME36035E 4G MILL 4FL Multiple Helix E/M 3.5X6X10X50
SEME36040E 4G MILL 4FL Multiple Helix E/M 4X6X10X50
SEME36045E 4G MILL 4FL Multiple Helix E/M 4.5X6X14X50
SEME36050E 4G MILL 4FL Multiple Helix E/M 5X6X15X60
SEME36060E 4G MILL 4FL Multiple Helix E/M 6X6X15X60
SEME36075E 4G MILL 4FL Multiple Helix E/M 7.5X8X20X60
SEME36080E 4G MILL 4FL Multiple Helix E/M 8X8X20X70
SEME36090 4G MILL 4FL Multiple Helix E/M 9X10X22X70
SEME36090E 4G MILL 4FL Multiple Helix E/M 9X10X22X70
SEME36100 4G MILL 4FL Multiple Helix E/M 10X10X25X75
SEME36100E 4G MILL 4FL Multiple Helix E/M 10X10X25X75
SEME36110E 4G MILL 4FL Multiple Helix E/M 11X12X30X75
SEME36120E 4G MILL 4FL Multiple Helix E/M 12X12X30X80
SEME36130E 4G MILL 4FL Multiple Helix E/M 13X12X35X100
SEME36150E 4G MILL 4FL Multiple Helix E/M 15X16X38X100
SEME36160E 4G MILL 4FL Multiple Helix E/M 16X16X40X100
SEME36170E 4G MILL 4FL Multiple Helix E/M 17X16X42X100
SEME36180E 4G MILL 4FL Multiple Helix E/M 18X16X45X100
SEME36190E 4G MILL 4FL Multiple Helix E/M 19X20X45X100
SEME36210E 4G MILL 4FL Multiple Helix E/M 21X20X45X100
SEME36220E 4G MILL 4FL Multiple Helix E/M 22X20X45X100
SEME36230E 4G MILL 4FL Multiple Helix E/M 23X25X50X120
SEME36240E 4G MILL 4FL Multiple Helix E/M 24X25X50X120
SEME36250E 4G MILL 4FL Multiple Helix E/M 25X25X50X120
SEME58120 4G MILL 2FL 0deg. Helix Ball E/M 12X12X32X110
SEME59060E 4G MILL 3FL 30deg. Helix Ball E/M 6X6X6X90
SEME6100200201E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 0.2(R0.02)X4X0.3(1)X40
SEME6100400502E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 0.4(R0.05)X4X0.6(2)X40
SEME6100600504E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 0.6(R0.05)X4X0.9(4)X45
SEME6101000506E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 1(R0.05)X4X1.5(6)X50
SEME610100106E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 1(R0.1)X4X1.5(6)X50
SEME610100206E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 1(R0.2)X4X1.5(6)X50
SEME610100303E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 1(R0.3)X4X1.5(3)X50
SEME610200108E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 2(R0.1)X4X3(8)X50
SEME610200208E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 2(R0.2)X4X3(8)X50
SEME610300112E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 3(R0.1)X6X4.5(12)X50
SEME610300212 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 3(R0.2)X6X4.5(12)X50
SEME610300212E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 3(R0.2)X6X4.5(12)X50
SEME610400110E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 4(R0.1)X6X6(10)X50
SEME610400116E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 4(R0.1)X6X6(16)X60
SEME610400216 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 4(R0.2)X6X6(16)X60
SEME610400514E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 4(R0.5)X6X6(14)X60
SEME610400516E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 4(R0.5)X6X6(16)X60
SEME6106002E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 6(R0.2)X6X9(20)X60
SEME6106005 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 6(R0.5)X6X9(20)X60
SEME6108010 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 8(R1)X8X12(25)X70
SEME6108010E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 8(R1)X8X12(25)X70
SEME6108015E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 8(R1.5)X8X12(25)X70
SEME62030050230E 4G MILL 2FL 30deg. Helix Taper Neck Corner Radius E/M(TiAlN) 3(R0.5)X6X4.5(30)X70(2˚)
SEME640100308E 4G MILL 4FL 30deg. Helix Rib Corner Radius E/M 1(R0.3)X4X1.5(8)X50
SEME640200330E 4G MILL 4FL 30deg. Helix Rib Corner Radius E/M 2(R0.3)X4X3(30)X70
SEME640200510E 4G MILL 4FL 30deg. Helix Rib Corner Radius E/M 2(R0.5)X4X3(10)X50
SEME640300330E 4G MILL 4FL Multiple Helix Rib Corner Radius E/M 3(R0.3)X6X4.5(30)X70
SEME640400516E 4G MILL 4FL Multiple Helix Rib Corner Radius E/M 4(R0.5)X6X6(16)X60
SEME6406005E 4G MILL 4FL Multiple Helix Rib Corner Radius E/M 6(R0.5)X6X9(20)X60
SEME6610020 4G MILL 4FL 10deg. Helix Corner Radius E/M 10(R2)X10X10(25)X75
SEME6610020100 4G MILL 4FL 10deg. Helix Corner Radius E/M 10(R2)X10X10(25)X100
SEME6612020 4G MILL 4FL 10deg. Helix Corner Radius E/M 12(R2)X12X12(30)X80
SEME7012050E 4G MILL 2FL 30deg. Helix Long E/M 12X12X50X100
SEME7014060E 4G MILL 2FL 30deg. Helix Long E/M 14X16X60X150
SEME7020050E 4G MILL 2FL 30deg. Helix Long E/M 20X20X50X110
SEME7020090200E 4G MILL 2FL 30deg. Helix Long E/M 20X20X90X200
SEME7101006E 4G MILL 4FL 38deg. Helix E/M 1X6X6X50
SEME7101506E 4G MILL 4FL 38deg. Helix E/M 1.5X6X6X50
SEME7101510E 4G MILL 4FL 38deg. Helix E/M 1.5X6X10X50
SEME7102010E 4G MILL 4FL 38deg. Helix E/M 2X6X10X50
SEME7103010E 4G MILL 4FL 38deg. Helix E/M 3X6X10X50
SEME7104012E 4G MILL 4FL 38deg. Helix E/M 4X6X12X50
SEME7104016E 4G MILL 4FL 38deg. Helix E/M 4X6X16X50
SEME71050E 4G MILL 4FL Multiple Helix E/M 5X6X15X60
SEME7106020E 4G MILL 4FL 38deg. Helix E/M 6X6X20X60
SEME71060E 4G MILL 4FL Multiple Helix E/M 6X6X15X60
SEME7108025E 4G MILL 4FL 38deg. Helix E/M 8X8X25X70
SEME71080E 4G MILL 4FL Multiple Helix E/M 8X8X20X70
SEME7110022E 4G MILL 4FL Multiple Helix E/M 10X10X22X65
SEME7110035E 4G MILL 4FL 38deg. Helix E/M 10X10X35X75
SEME71100E 4G MILL 4FL Multiple Helix E/M 10X10X25X75
SEME71120 4G MILL 4FL Multiple Helix E/M 12X12X30X80
SEME7112026E 4G MILL 4FL Multiple Helix E/M 12X12X26X70
SEME71120E 4G MILL 4FL Multiple Helix E/M 12X12X30X80
SEME71160E 4G MILL 4FL Multiple Helix E/M 16X16X40X100
SEME71200E 4G MILL 4FL Multiple Helix E/M 20X20X45X100
SEME7202010E 4G MILL 4FL 30deg. Helix Long E/M 2X6X10X60
SEME7202014E 4G MILL 4FL 30deg. Helix Long E/M 2X6X14X60
SEME7203012E 4G MILL 4FL 30deg. Helix Long E/M 3X6X12X70
SEME7203016E 4G MILL 4FL 30deg. Helix Long E/M 3X6X16X70
SEME7204016E 4G MILL 4FL 30deg. Helix Long E/M 4X6X16X70
SEME7204026E 4G MILL 4FL 30deg. Helix Long E/M 4X6X26X70
SEME7206020 4G MILL 4FL 30deg. Helix Long E/M 6X6X20X70
SEME7206020090E 4G MILL 4FL 30deg. Helix Long E/M 6X6X20X90
SEME7206020E 4G MILL 4FL 30deg. Helix Long E/M 6X6X20X70
SEME7206030E 4G MILL 4FL 30deg. Helix Long E/M 6X6X30X80
SEME7206040120E 4G MILL 4FL 30deg. Helix Long E/M 6X6X40X120
SEME7208025E 4G MILL 4FL 30deg. Helix Long E/M 8X8X25X80
SEME7208030100E 4G MILL 4FL 30deg. Helix Long E/M 8X8X30X100
SEME7208040120E 4G MILL 4FL 30deg. Helix Long E/M 8X8X40X120
SEME7208040E 4G MILL 4FL 30deg. Helix Long E/M 8X8X40X90
SEME7210030100E 4G MILL 4FL 30deg. Helix Long E/M 10X10X30X100
SEME7210035E 4G MILL 4FL 30deg. Helix Long E/M 10X10X35X90
SEME7210040120E 4G MILL 4FL 30deg. Helix Long E/M 10X10X40X120
SEME7210050200E 0 4G MILL 4FL 30deg. Helix Long E/M 10X10X50X200
SEME7210050E 4G MILL 4FL 30deg. Helix Long E/M 10X10X50X100
SEME7212040E 4G MILL 4FL 30deg. Helix Long E/M 12X12X40X100
SEME7212045E 4G MILL 4FL 30deg. Helix Long E/M 12X12X45X130
SEME7212050150E 4G MILL 4FL 30deg. Helix Long E/M 12X12X50X150
SEME7212060E 4G MILL 4FL 30deg. Helix Long E/M 12X12X60X110
SEME7214060E 4G MILL 4FL 30deg. Helix Long E/M 14X16X60X150
SEME7216050E 4G MILL 4FL 30deg. Helix Long E/M 16X16X50X110
SEME7216060E 4G MILL 4FL 30deg. Helix Long E/M 16X16X60X120
SEME7216080E 4G MILL 4FL 30deg. Helix Long E/M 16X16X80X150
SEME72200110E 4G MILL 4FL 30deg. Helix Long E/M 20X20X110X200
SEME7220080E 4G MILL 4FL 30deg. Helix Long E/M 20X20X80X150
SEME7225070E 4G MILL 4FL 30deg. Helix Long E/M 25X25X70X150
SEME7301506E 4G MILL 4FL 30deg. Helix Rib E/M 1.5X4X2.3(6)X50
SEME7302006E 4G MILL 4FL 30deg. Helix Rib E/M 2X4X3(6)X50
SEME7302008E 4G MILL 4FL 30deg. Helix Rib E/M 2X4X3(8)X50
SEME7302010E 4G MILL 4FL 30deg. Helix Rib E/M 2X4X3(10)X50
SEME7302014E 4G MILL 4FL 30deg. Helix Rib E/M 2X4X3(14)X50
SEME7302016E 4G MILL 4FL 30deg. Helix Rib E/M 2X4X3(16)X50
SEME7302018E 4G MILL 4FL 30deg. Helix Rib E/M 2X4X3(18)X50
SEME7303010E 4G MILL 4FL 30deg. Helix Rib E/M 3X6X4.5(10)X50
SEME7303012E 4G MILL 4FL 30deg. Helix Rib E/M 3X6X4.5(12)X50
SEME7303014E 4G MILL 4FL 30deg. Helix Rib E/M 3X6X4.5(14)X60
SEME7303016E 4G MILL 4FL 30deg. Helix Rib E/M 3X6X4.5(16)X60
SEME7303020E 4G MILL 4FL 30deg. Helix Rib E/M 3X6X4.5(20)X60
SEME7304014E 4G MILL 4FL 30deg. Helix Rib E/M 4X6X6(14)X60
SEME7304016E 4G MILL 4FL 30deg. Helix Rib E/M 4X6X6(16)X60
SEME7304020E 4G MILL 4FL 30deg. Helix Rib E/M 4X6X6(20)X60
SEME7304026E 4G MILL 4FL 30deg. Helix Rib E/M 4X6X6(26)X65
SEME7304040E 4G MILL 4FL 30deg. Helix Rib E/M 4X6X6(40)X80
SEME7305030E 4G MILL 4FL 30deg. Helix Rib E/M 5X6X8(30)X70
SEME7306032E 4G MILL 4FL 30deg. Helix Rib E/M 6X6X9(32)X90
SEME7310045E 4G MILL 4FL 30deg. Helix Rib E/M 10X10X15(45)X100
SEME75060E 4G MILL 6FL 45deg. Helix E/M 6X6X15X60
SEME7508035E 4G MILL 6FL 45deg. Helix E/M 8X8X35X90
SEME75080E 4G MILL 6FL 45deg. Helix E/M 8X8X20X70
SEME75100E 4G MILL 6FL 45deg. Helix E/M 10X10X25X75
SEME7512040E 4G MILL 6FL 45deg. Helix E/M 12X12X40X90
SEME7512060E 4G MILL 6FL 45deg. Helix E/M 12X12X60X110
SEME75120E 4G MILL 6FL 45deg. Helix E/M 12X12X30X80
SEME7516060E 4G MILL 6FL 45deg. Helix E/M 16X16X60X120
SEME7516090E 4G MILL 6FL 45deg. Helix E/M 16X16X90X150
SEME78005005 4G MILL 2FL 30deg. Helix Taper E/M 0.5X4X2X45(0.5˚)
SEME7800501 4G MILL 2FL 30deg. Helix Taper E/M 0.5X4X2X45(1˚)
SEME78005015 4G MILL 2FL 30deg. Helix Taper E/M 0.5X4X2X45(1.5˚)
SEME7800502 4G MILL 2FL 30deg. Helix Taper E/M 0.5X4X2X45(2˚)
SEME7800503 4G MILL 2FL 30deg. Helix Taper E/M 0.5X4X2X45(3˚)
SEME7800505 4G MILL 2FL 30deg. Helix Taper E/M 0.5X4X2.5X45(5˚)
SEME7800510 4G MILL 2FL 30deg. Helix Taper E/M 0.5X4X2.5X45(10˚)
SEME78006005 4G MILL 2FL 30deg. Helix Taper E/M 0.6X4X2.4X45(0.5˚)
SEME7800601 4G MILL 2FL 30deg. Helix Taper E/M 0.6X4X2.4X45(1˚)
SEME78006015 4G MILL 2FL 30deg. Helix Taper E/M 0.6X4X2.4X45(1.5˚)
SEME7800602 4G MILL 2FL 30deg. Helix Taper E/M 0.6X4X2.4X45(2˚)
SEME7800603 4G MILL 2FL 30deg. Helix Taper E/M 0.6X4X2.4X45(3˚)
SEME7800605 4G MILL 2FL 30deg. Helix Taper E/M 0.6X4X3X45(5˚)
SEME7800610 4G MILL 2FL 30deg. Helix Taper E/M 0.6X4X3X45(10˚)
SEME78008005 4G MILL 2FL 30deg. Helix Taper E/M 0.8X4X3.2X45(30')
SEME7800801 4G MILL 2FL 30deg. Helix Taper E/M 0.8X4X3.2X45(1˚)
SEME78008015 4G MILL 2FL 30deg. Helix Taper E/M 0.8X4X3.2X45(1.5˚)
SEME7800802 4G MILL 2FL 30deg. Helix Taper E/M 0.8X4X3.2X45(2˚)
SEME7800803 4G MILL 2FL 30deg. Helix Taper E/M 0.8X4X3.2X45(3˚)
SEME7800805 4G MILL 2FL 30deg. Helix Taper E/M 0.8X4X4X45(5˚)
SEME7800810 4G MILL 2FL 30deg. Helix Taper E/M 0.8X4X4X45(10˚)
SEME78010005 4G MILL 2FL 30deg. Helix Taper E/M 1X4X4X50(30')
SEME7801001 4G MILL 2FL 30deg. Helix Taper E/M 1X4X4X50(1˚)
SEME78010015 4G MILL 2FL 30deg. Helix Taper E/M 1X4X4X50(1.5˚)
SEME7801002 4G MILL 2FL 30deg. Helix Taper E/M 1X4X6X50(2˚)
SEME7801003 4G MILL 2FL 30deg. Helix Taper E/M 1X4X6X50(3˚)
SEME7801005 4G MILL 2FL 30deg. Helix Taper E/M 1X4X8X50(5˚)
SEME7801010 4G MILL 2FL 30deg. Helix Taper E/M 1X4X8X50(10˚)
SEME78015005 4G MILL 2FL 30deg. Helix Taper E/M 1.5X4X6X50(30')
SEME7801501 4G MILL 2FL 30deg. Helix Taper E/M 1.5X4X6X50(1˚)
SEME78015015 4G MILL 2FL 30deg. Helix Taper E/M 1.5X4X6X50(1.5˚)
SEME7801502 4G MILL 2FL 30deg. Helix Taper E/M 1.5X4X8X50(2˚)
SEME7801503 4G MILL 2FL 30deg. Helix Taper E/M 1.5X4X8X50(3˚)
SEME7801505 4G MILL 2FL 30deg. Helix Taper E/M 1.5X4X10X50(5˚)
SEME7801510 4G MILL 2FL 30deg. Helix Taper E/M 1.5X6X10X50(10˚)
SEME78020005 4G MILL 2FL 30deg. Helix Taper E/M 2X4X8X50(30')
SEME7802001 4G MILL 2FL 30deg. Helix Taper E/M 2X4X8X50(1˚)
SEME78020015 4G MILL 2FL 30deg. Helix Taper E/M 2X4X8X50(1.5˚)
SEME7802002 4G MILL 2FL 30deg. Helix Taper E/M 2X4X10X50(2˚)
SEME7802003 4G MILL 2FL 30deg. Helix Taper E/M 2X4X10X50(3˚)
SEME7802005 4G MILL 2FL 30deg. Helix Taper E/M 2X6X12X50(5˚)
SEME7802010 4G MILL 2FL 30deg. Helix Taper E/M 2X8X12X50(10˚)
SEME7802510 4G MILL 2FL 30deg. Helix Taper E/M 2.5X8X14X50(10˚)
SEME78030005 4G MILL 2FL 30deg. Helix Taper E/M 3X6X12X50(30')
SEME7803001 4G MILL 2FL 30deg. Helix Taper E/M 3X6X12X50(1˚)
SEME7803002 4G MILL 2FL 30deg. Helix Taper E/M 3X6X14X50(2˚)
SEME7803003 4G MILL 2FL 30deg. Helix Taper E/M 3X6X14X50(3˚)
SEME7803005 4G MILL 2FL 30deg. Helix Taper E/M 3X6X16X50(5˚)
SEME78040005 4G MILL 2FL 30deg. Helix Taper E/M 4X6X16X60(30')
SEME7804001 4G MILL 2FL 30deg. Helix Taper E/M 4X6X16X60(1˚)
SEME7804002 4G MILL 2FL 30deg. Helix Taper E/M 4X6X16X60(2˚)
SEME7804003 4G MILL 2FL 30deg. Helix Taper E/M 4X6X19X60(3˚)
SEME7804005 4G MILL 2FL 30deg. Helix Taper E/M 4X8X22X65(5˚)
SEME78060005 4G MILL 2FL 30deg. Helix Taper E/M 6X8X20X65(30')
SEME7806001 4G MILL 2FL 30deg. Helix Taper E/M 6X8X20X65(1˚)
SEME7806002 4G MILL 2FL 30deg. Helix Taper E/M 6X8X20X65(2˚)
SEME81030005 4G MILL 4FL 30deg. Helix Taper E/M 3X6X12X50(30')
SEME8103001 4G MILL 4FL 30deg. Helix Taper E/M 3X6X12X50(1˚)
SEME81030015 4G MILL 4FL 30deg. Helix Taper E/M 3X6X12X50(1.5˚)
SEME8103002 4G MILL 4FL 30deg. Helix Taper E/M 3X6X14X50(2˚)
SEME8103003 4G MILL 4FL 30deg. Helix Taper E/M 3X6X14X50(3˚)
SEME8103003E 4G MILL 4FL 30deg. Helix Taper E/M 3X6X14X50(3˚)
SEME8103005 4G MILL 4FL 30deg. Helix Taper E/M 3X6X16X50(5˚)
SEME81040005 4G MILL 4FL 30deg. Helix Taper E/M 4X6X16X60(30')
SEME8104001 4G MILL 4FL 30deg. Helix Taper E/M 4X6X16X60(1˚)
SEME81040015 4G MILL 4FL 30deg. Helix Taper E/M 4X6X16X60(1.5˚)
SEME8104002 4G MILL 4FL 30deg. Helix Taper E/M 4X6X16X60(2˚)
SEME8104003 4G MILL 4FL 30deg. Helix Taper E/M 4X6X19X60(3˚)
SEME8104005 4G MILL 4FL 30deg. Helix Taper E/M 4X8X22X65(5˚)
SEME8106001 4G MILL 4FL 30deg. Helix Taper E/M 6X8X20X65(1˚)
SEME81080005 4G MILL 4FL 30deg. Helix Taper E/M 8X10X35X90(30')
SEME8108001 4G MILL 4FL 30deg. Helix Taper E/M 8X10X35X90(1˚)
SEME81080015 4G MILL 4FL 30deg. Helix Taper E/M 8X10X35X90(1.5˚)
SEME8108002 4G MILL 4FL 30deg. Helix Taper E/M 8X10X28X90(2˚)
SEME8108005 4G MILL 4FL 30deg. Helix Taper E/M 8X16X45X100(5˚)
SEME950080208 4G MILL 4FL 30deg. Helix Taper E/M 0.8X4X8X45(2˚)
SEME950100210 4G MILL 4FL 30deg. Helix Taper E/M 1X4X10X50(2˚)
SEME9501500510 4G MILL 4FL 30deg. Helix Taper E/M 1.5X4X10X50(30')
SEME950150112 4G MILL 4FL 30deg. Helix Taper E/M 1.5X4X12X50(1˚)
SEME950150212 4G MILL 4FL 30deg. Helix Taper E/M 1.5X4X12X50(2?)
SEME9502000512 4G MILL 4FL 30deg. Helix Taper E/M 2X4X12X50(30')
SG9E76040 4G MILL MFL 20deg. Helix Roughing E/M 4X6X10X50

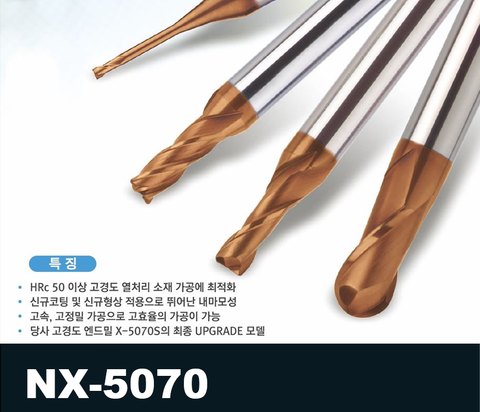

Dao phay sau nhiệt luyện NX-5070
• Đường kính: phẳng D0.3-D20 mm, cầu R0.05- R12.5
• Dao hợp kim cỡ hạt nano, chịu mài mòn tốt
• Độ bóng bề mặt cao
• Gia công vật liệu thép trước nhiệt luyện và thép sau nhiệt luyện độ cứng từ 50-70 HRC
| Mã sản phẩm | Mô tả | Kích thước |
| SGNF01002 | NX5070 2FL 30deg. Helix Ball E/M | 0.2X4X0.4X40 |
| SGNF01003 | NX5070 2FL 30deg. Helix Ball E/M | 0.3X4X0.6X40 |
| SGNF01004 | NX5070 2FL 30deg. Helix Ball E/M | 0.4X4X0.8X40 |
| SGNF01005 | NX5070 2FL 30deg. Helix Ball E/M | 0.5X4X1X40 |
| SGNF01006 | NX5070 2FL 30deg. Helix Ball E/M | 0.6X4X1.2X40 |
| SGNF01008 | NX5070 2FL 30deg. Helix Ball E/M | 0.8X4X1.6X40 |
| SGNF01010 | NX5070 2FL 30deg. Helix Ball E/M | 1X6X2.5X50 |
| SGNF01015 | NX5070 2FL 30deg. Helix Ball E/M | 1.5X6X4X50 |
| SGNF01020 | NX5070 2FL 30deg. Helix Ball E/M | 2X6X5X50 |
| SGNF01025 | NX5070 2FL 30deg. Helix Ball E/M | 2.5X6X7X60 |
| SGNF01030 | NX5070 2FL 30deg. Helix Ball E/M | 3X6X8X60 |
| SGNF01040 | NX5070 2FL 30deg. Helix Ball E/M | 4X6X8X70 |
| SGNF01050 | NX5070 2FL 30deg. Helix Ball E/M | 5X6X10X80 |
| SGNF01060 | NX5070 2FL 30deg. Helix Ball E/M | 6X6X12X90 |
| SGNF01060060 | NX5070 2FL 30deg. Helix Ball E/M | 6X6X12X60 |
| SGNF01080 | NX5070 2FL 30deg. Helix Ball E/M | 8X8X14X100 |
| SGNF01100 | NX5070 2FL 30deg. Helix Ball E/M | 10X10X18X100 |
| SGNF01120 | NX5070 2FL 30deg. Helix Ball E/M | 12X12X22X110 |
| SGNF0200201 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.2X4X0.2(1)X40 |
| SGNF0200301 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.3X4X0.3(1)X40 |
| SGNF0200302 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.3X4X0.3(2)X40 |
| SGNF0200303 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.3X4X0.3(3)X40 |
| SGNF0200402 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.4X4X0.4(2)X40 |
| SGNF0200403 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.4X4X0.4(3)X40 |
| SGNF0200405 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.4X4X0.4(5)X40 |
| SGNF0200502 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.5X4X0.5(2)X40 |
| SGNF0200506 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.5X4X0.5(6)X40 |
| SGNF0200603 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.6X4X0.6(3)X40 |
| SGNF0200605 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.6X4X0.6(5)X40 |
| SGNF0200606 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.6X4X0.6(6)X40 |
| SGNF0200608 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.6X4X0.6(8)X40 |
| SGNF0200804 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.8X4X0.8(4)X40 |
| SGNF0200806 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.8X4X0.8(6)X40 |
| SGNF0200810 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.8X4X0.8(10)X40 |
| SGNF0201004 | NX5070 2FL 30deg. Helix Rib Ball E/M | 1X4X1(4)X45 |
| SGNF0201006 | NX5070 2FL 30deg. Helix Rib Ball E/M | 1X4X1(6)X45 |
| SGNF0201008 | NX5070 2FL 30deg. Helix Rib Ball E/M | 1X4X1(8)X45 |
| SGNF0201010 | NX5070 2FL 30deg. Helix Rib Ball E/M | 1X4X1(10)X45 |
| SGNF0201012 | NX5070 2FL 30deg. Helix Rib Ball E/M | 1X4X1(12)X45 |
| SGNF0201016 | NX5070 2FL 30deg. Helix Rib Ball E/M | 1X4X1(16)X45 |
| SGNF0201504 | NX5070 2FL 30deg. Helix Rib Ball E/M | 1.5X4X1.5(4)X45 |
| SGNF0201508 | NX5070 2FL 30deg. Helix Rib Ball E/M | 1.5X4X1.5(8)X45 |
| SGNF0201512 | NX5070 2FL 30deg. Helix Rib Ball E/M | 1.5X4X1.5(12)X45 |
| SGNF0202006 | NX5070 2FL 30deg. Helix Rib Ball E/M | 2X4X3(6)X45 |
| SGNF0202008 | NX5070 2FL 30deg. Helix Rib Ball E/M | 2X4X3(8)X45 |
| SGNF0202010 | NX5070 2FL 30deg. Helix Rib Ball E/M | 2X4X3(10)X45 |
| SGNF0202012 | NX5070 2FL 30deg. Helix Rib Ball E/M | 2X4X3(12)X45 |
| SGNF0202016 | NX5070 2FL 30deg. Helix Rib Ball E/M | 2X4X3(16)X50 |
| SGNF0202020 | NX5070 2FL 30deg. Helix Rib Ball E/M | 2X4X3(20)X50 |
| SGNF0203008 | NX5070 2FL 30deg. Helix Rib Ball E/M | 3X6X4(8)X55 |
| SGNF0203010 | NX5070 2FL 30deg. Helix Rib Ball E/M | 3X6X4(10)X55 |
| SGNF0203012 | NX5070 2FL 30deg. Helix Rib Ball E/M | 3X6X4(12)X55 |
| SGNF0203014 | NX5070 2FL 30deg. Helix Rib Ball E/M | 3X6X4(14)X55 |
| SGNF0203016 | NX5070 2FL 30deg. Helix Rib Ball E/M | 3X6X4(16)X55 |
| SGNF0203035 | NX5070 2FL 30deg. Helix Rib Ball E/M | 3X6X4(35)X75 |
| SGNF0204012 | NX5070 2FL 30deg. Helix Rib Ball E/M | 4X6X5(12)X55 |
| SGNF0204016 | NX5070 2FL 30deg. Helix Rib Ball E/M | 4X6X5(16)X55 |
| SGNF0204020 | NX5070 2FL 30deg. Helix Rib Ball E/M | 4X6X5(20)X60 |
| SGNF0204026 | NX5070 2FL 30deg. Helix Rib Ball E/M | 4X6X5(26)X60 |
| SGNF0204030 | NX5070 2FL 30deg. Helix Rib Ball E/M | 4X6X5(30)X70 |
| SGNF0204040 | NX5070 2FL 30deg. Helix Rib Ball E/M | 4X6X5(40)X80 |
| SGNF0206020 | NX5070 2FL 30deg. Helix Rib Ball E/M | 6X6X8(20)X60 |
| SGNF0206030 | NX5070 2FL 30deg. Helix Rib Ball E/M | 6X6X8(30)X60 |
| SGNF0208020 | NX5070 2FL 30deg. Helix Rib Ball E/M | 8X8X10(20)X80 |
| SGNF0208030 | NX5070 2FL 30deg. Helix Rib Ball E/M | 8X8X10(30)X100 |
| SGNF0210035 | NX5070 2FL 30deg. Helix Rib Ball E/M | 10X10X12(35)X100 |
| SGNF040100104 | NX5070 2FL 35deg. Helix Rib Corner Radius E/M | 1(R0.1)X4X2(4)X45 |
| SGNF040100106 | NX5070 2FL 35deg. Helix Rib Corner Radius E/M | 1(R0.1)X4X2(6)X45 |
| SGNF040200206 | NX5070 2FL 35deg. Helix Rib Corner Radius E/M | 2(R0.2)X4X3(6)X45 |
| SGNF040200208 | NX5070 2FL 35deg. Helix Rib Corner Radius E/M | 2(R0.2)X4X3(8)X45 |
| SGNF040200210 | NX5070 2FL 35deg. Helix Rib Corner Radius E/M | 2(R0.2)X4X3(10)X45 |
| SGNF040300216 | NX5070 2FL 35deg. Helix Rib Corner Radius E/M | 3(R0.2)X6X4.5(16)X55 |
| SGNF040400216 | NX5070 2FL 35deg. Helix Rib Corner Radius E/M | 4(R0.2)X6X6(16)X55 |
| SGNF0506005 | NX5070 4FL Multiple Helix Corner Radius E/M | 6(R0.5)X6X15X90 |
| SGNF0506010 | NX5070 4FL Multiple Helix Corner Radius E/M | 6(R1)X6X15X90 |
| SGNF0508005 | NX5070 4FL Multiple Helix Corner Radius E/M | 8(R0.5)X8X20X100 |
| SGNF0508010 | NX5070 4FL Multiple Helix Corner Radius E/M | 8(R1)X8X20X100 |
| SGNF0510010 | NX5070 4FL Multiple Helix Corner Radius E/M | 10(R1)X10X25X100 |
| SGNF0510020 | NX5070 4FL Multiple Helix Corner Radius E/M | 10(R2)X10X25X100 |
| SGNF0512010 | NX5070 4FL Multiple Helix Corner Radius E/M | 12(R1)X12X30X110 |
| SGNF0512020 | NX5070 4FL Multiple Helix Corner Radius E/M | 12(R2)X12X30X110 |
| SGNF060400510 | NX5070 4FL Multiple Helix Rib Corner Radius E/M | 4(R0.5)X6X6(10)X55 |
| SGNF060400516 | NX5070 4FL Multiple Helix Rib Corner Radius E/M | 4(R0.5)X6X6(16)X55 |
| SGNF060400520 | NX5070 4FL Multiple Helix Rib Corner Radius E/M | 4(R0.5)X6X6(20)X60 |
| SGNF0606005 | NX5070 4FL Multiple Helix Rib Corner Radius E/M | 6(R0.5)X6X9(20)X60 |
| SGNF0606010 | NX5070 4FL Multiple Helix Rib Corner Radius E/M | 6(R1)X6X9(20)X60 |
| SGNF0608005 | NX5070 4FL Multiple Helix Rib Corner Radius E/M | 8(R0.5)X8X12(22)X70 |
| SGNF0608010 | NX5070 4FL Multiple Helix Rib Corner Radius E/M | 8(R1)X8X12(22)X70 |
| SGNF0610005 | NX5070 4FL Multiple Helix Rib Corner Radius E/M | 10(R0.5)X10X15(25)X75 |
| SGNF0610020 | NX5070 4FL Multiple Helix Rib Corner Radius E/M | 10(R2)X10X15(25)X75 |
| SGNF0612005 | NX5070 4FL Multiple Helix Rib Corner Radius E/M | 12(R0.5)X12X18(30)X80 |
| SGNF0612020 | NX5070 4FL Multiple Helix Rib Corner Radius E/M | 12(R2)X12X18(30)X80 |
| SGNF07002 | NX5070 2FL 35deg. Helix E/M | 0.2X4X0.4X40 |
| SGNF07003 | NX5070 2FL 35deg. Helix E/M | 0.3X4X0.6X40 |
| SGNF07004 | NX5070 2FL 35deg. Helix E/M | 0.4X4X0.8X40 |
| SGNF07005 | NX5070 2FL 35deg. Helix E/M | 0.5X4X1X40 |
| SGNF07006 | NX5070 2FL 35deg. Helix E/M | 0.6X4X1.2X40 |
| SGNF07008 | NX5070 2FL 35deg. Helix E/M | 0.8X4X1.6X40 |
| SGNF07010 | NX5070 2FL 35deg. Helix E/M | 1X6X2.5X50 |
| SGNF07015 | NX5070 2FL 35deg. Helix E/M | 1.5X6X4X50 |
| SGNF07020 | NX5070 2FL 35deg. Helix E/M | 2X6X6X50 |
| SGNF07025 | NX5070 2FL 35deg. Helix E/M | 2.5X6X7X50 |
| SGNF07030 | NX5070 2FL 35deg. Helix E/M | 3X6X8X60 |
| SGNF07040 | NX5070 2FL 35deg. Helix E/M | 4X6X10X60 |
| SGNF07050 | NX5070 2FL 35deg. Helix E/M | 5X6X13X60 |
| SGNF07060 | NX5070 2FL 35deg. Helix E/M | 6X6X15X60 |
| SGNF07080 | NX5070 2FL 35deg. Helix E/M | 8X8X20X65 |
| SGNF07100 | NX5070 2FL 35deg. Helix E/M | 10X10X25X70 |
| SGNF07120 | NX5070 2FL 35deg. Helix E/M | 12X12X30X80 |
| SGNF0800201 | NX5070 2FL 35deg. Helix Rib E/M | 0.2X4X0.3(1)X40 |
| SGNF08002015 | NX5070 2FL 35deg. Helix Rib E/M | 0.2X4X0.3(1.5)X40 |
| SGNF0800302 | NX5070 2FL 35deg. Helix Rib E/M | 0.3X4X0.45(2)X40 |
| SGNF0800303 | NX5070 2FL 35deg. Helix Rib E/M | 0.3X4X0.45(3)X40 |
| SGNF0800402 | NX5070 2FL 35deg. Helix Rib E/M | 0.4X4X0.6(2)X40 |
| SGNF0800403 | NX5070 2FL 35deg. Helix Rib E/M | 0.4X4X0.6(3)X40 |
| SGNF0800404 | NX5070 2FL 35deg. Helix Rib E/M | 0.4X4X0.6(4)X40 |
| SGNF0800502 | NX5070 2FL 35deg. Helix Rib E/M | 0.5X4X0.7(2)X40 |
| SGNF0800504 | NX5070 2FL 35deg. Helix Rib E/M | 0.5X4X0.7(4)X40 |
| SGNF0800506 | NX5070 2FL 35deg. Helix Rib E/M | 0.5X4X0.7(6)X40 |
| SGNF0800508 | NX5070 2FL 35deg. Helix Rib E/M | 0.5X4X0.7(8)X40 |
| SGNF0800603 | NX5070 2FL 35deg. Helix Rib E/M | 0.6X4X0.9(3)X40 |
| SGNF0800606 | NX5070 2FL 35deg. Helix Rib E/M | 0.6X4X0.9(6)X40 |
| SGNF0800804 | NX5070 2FL 35deg. Helix Rib E/M | 0.8X4X1.2(4)X40 |
| SGNF0800806 | NX5070 2FL 35deg. Helix Rib E/M | 0.8X4X1.2(6)X40 |
| SGNF0800808 | NX5070 2FL 35deg. Helix Rib E/M | 0.8X4X1.2(8)X40 |
| SGNF0801004 | NX5070 2FL 35deg. Helix Rib E/M | 1X4X1.5(4)X45 |
| SGNF0801006 | NX5070 2FL 35deg. Helix Rib E/M | 1X4X1.5(6)X45 |
| SGNF0801008 | NX5070 2FL 35deg. Helix Rib E/M | 1X4X1.5(8)X45 |
| SGNF0801010 | NX5070 2FL 35deg. Helix Rib E/M | 1X4X1.5(10)X45 |
| SGNF0801012 | NX5070 2FL 35deg. Helix Rib E/M | 1X4X1.5(12)X45 |
| SGNF0801016 | NX5070 2FL 35deg. Helix Rib E/M | 1X4X1.5(16)X45 |
| SGNF0801506 | NX5070 2FL 35deg. Helix Rib E/M | 1.5X4X2.3(6)X45 |
| SGNF0801512 | NX5070 2FL 35deg. Helix Rib E/M | 1.5X4X2.3(12)X45 |
| SGNF0802008 | NX5070 2FL 35deg. Helix Rib E/M | 2X4X3(8)X45 |
| SGNF0802010 | NX5070 2FL 35deg. Helix Rib E/M | 2X4X3(10)X45 |
| SGNF0802012 | NX5070 2FL 35deg. Helix Rib E/M | 2X4X3(12)X45 |
| SGNF0802016 | NX5070 2FL 35deg. Helix Rib E/M | 2X4X3(16)X50 |
| SGNF0803012 | NX5070 2FL 35deg. Helix Rib E/M | 3X6X4.5(12)X55 |
| SGNF0803016 | NX5070 2FL 35deg. Helix Rib E/M | 3X6X4.5(16)X55 |
| SGNF0803020 | NX5070 2FL 35deg. Helix Rib E/M | 3X6X4.5(20)X60 |
| SGNF0804012 | NX5070 2FL 35deg. Helix Rib E/M | 4X6X6(12)X55 |
| SGNF0804016 | NX5070 2FL 35deg. Helix Rib E/M | 4X6X6(16)X55 |
| SGNF0804020 | NX5070 2FL 35deg. Helix Rib E/M | 4X6X6(20)X60 |
| SGNF0804026 | NX5070 2FL 35deg. Helix Rib E/M | 4X6X6(26)X60 |
| SGNF09010 | NX5070 4FL 45deg. Helix E/M | 1X6X2.5X50 |
| SGNF09015 | NX5070 4FL 45deg. Helix E/M | 1.5X6X4X50 |
| SGNF09020 | NX5070 4FL 45deg. Helix E/M | 2X6X6X50 |
| SGNF09030 | NX5070 4FL Multiple Helix E/M | 3X6X8X60 |
| SGNF09040 | NX5070 4FL Multiple Helix E/M | 4X6X10X60 |
| SGNF09050 | NX5070 4FL Multiple Helix E/M | 5X6X13X60 |
| SGNF09060 | NX5070 4FL Multiple Helix E/M | 6X6X15X60 |
| SGNF09080 | NX5070 4FL Multiple Helix E/M | 8X8X20X65 |
| SGNF09100 | NX5070 4FL Multiple Helix E/M | 10X10X25X70 |
| SGNF09120 | NX5070 4FL Multiple Helix E/M | 12X12X30X80 |
| SGNF1108020 | NX5070 4FL Multiple Helix Rib E/M | 8X8X12(20)X70 |

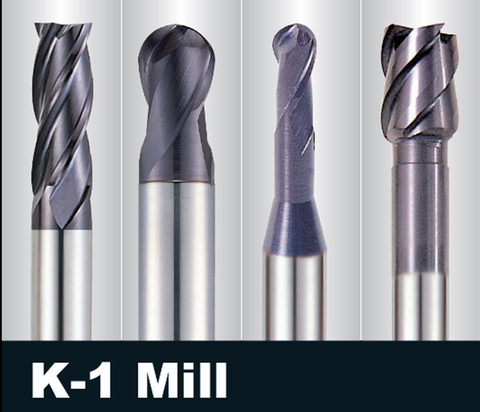

Dao phay K-1
• Đường kính: phẳng D1-D12 mm,
• Dao hợp kim cỡ hạt micro, chịu mài mòn tốt
• Gia công thép độ cứng trung bình và thép sau nhiệt luyện độ cứng đến 55 HRC
• Gia công từ thô, bán tinh đến tinh
| Mã sản phẩm | Mô tả | Kích thước |
| GMF86010 | K-1 2FL 30deg. Helix Short E/M | 1X4X3X50 |
| GMF86015 | K-1 2FL 30deg. Helix Short E/M | 1.5X4X4X50 |
| GMF86020 | K-1 2FL 30deg. Helix Short E/M | 2X4X6X50 |
| GMF86030 | K-1 2FL 30deg. Helix Short E/M | 3X4X8X50 |
| GMF86040 | K-1 2FL 30deg. Helix Short E/M | 4X4X11X50 |
| GMF86050 | K-1 2FL 30deg. Helix Short E/M | 5X6X13X50 |
| GMF86060 | K-1 2FL 30deg. Helix Short E/M | 6X6X16X50 |
| GMF86080 | K-1 2FL 30deg. Helix Short E/M | 8X8X20X60 |
| GMF86100 | K-1 2FL 30deg. Helix Short E/M | 10X10X25X75 |
| GMF86120 | K-1 2FL 30deg. Helix Short E/M | 12X12X32X75 |
| GMF87010 | K-1 4FL 30deg. Helix Short E/M | 1X4X3X50 |
| GMF87015 | K-1 4FL 30deg. Helix Short E/M | 1.5X4X4X50 |
| GMF87020 | K-1 4FL 30deg. Helix Short E/M | 2X4X6X50 |
| GMF87030 | K-1 4FL 30deg. Helix Short E/M | 3X4X8X50 |
| GMF87040 | K-1 4FL 30deg. Helix Short E/M | 4X4X11X50 |
| GMF87050 | K-1 4FL 30deg. Helix Short E/M | 5X6X13X50 |
| GMF87060 | K-1 4FL 30deg. Helix Short E/M | 6X6X16X50 |
| GMF87070 | K-1 4FL 30deg. Helix Short E/M | 7X8X20X60 |
| GMF87080 | K-1 4FL 30deg. Helix Short E/M | 8X8X20X60 |
| GMF87090 | K-1 4FL 30deg. Helix Short E/M | 9X10X20X75 |
| GMF87100 | K-1 4FL 30deg. Helix Short E/M | 10X10X25X75 |
| GMF87120 | K-1 4FL 30deg. Helix Short E/M | 12X12X32X75 |
| GMF88010 | K-1 2FL 30deg. Helix Short Ball E/M | 1X4X2X50 |
| GMF88015 | K-1 2FL 30deg. Helix Short Ball E/M | 1.5X4X4X50 |
| GMF88020 | K-1 2FL 30deg. Helix Short Ball E/M | 2X4X5X50 |
| GMF88030 | K-1 2FL 30deg. Helix Short Ball E/M | 3X4X6X50 |
| GMF88040 | K-1 2FL 30deg. Helix Short Ball E/M | 4X4X8X50 |
| GMF88050 | K-1 2FL 30deg. Helix Short Ball E/M | 5X6X10X50 |
| GMF88060 | K-1 2FL 30deg. Helix Short Ball E/M | 6X6X12X50 |
| GMF88080 | K-1 2FL 30deg. Helix Short Ball E/M | 8X8X14X60 |
| GMF88100 | K-1 2FL 30deg. Helix Short Ball E/M | 10X10X20X75 |
| GMF88120 | K-1 2FL 30deg. Helix Short Ball E/M | 12X12X24X75 |
Dao phay ALU-POWER
•Đường kính: phẳng D2-D25 mm,
• Dao hợp kim cỡ hạt micro
• Dùng đề gia công nhôm hoặc vật liệu phi từ tính
• Lưỡi cắt được thiết kế chuyên dụng
• Số me cắt 1-3 me
• Cho độ bóng bề mặt cao
• Gia công thô, bán tinh, tinh
| Mã sản phẩm | Mô tả sản phẩm | Kích thước |
| E5254006 | ALU-POWER 2FL 42deg. Helix E/M | 3/32X1/8X1/4X1_1/2 |
| E5521060 | ALU-POWER 2FL 45deg. Helix E/M | 6X6X13X57 |
| E5522020 | ALU-POWER 2FL 45deg. Helix Long E/M | 2X3X7X38 |
| E5522030 | ALU-POWER 2FL 45deg. Helix Long E/M | 3X6X8X57 |
| E5522040 | ALU-POWER 2FL 45deg. Helix Long E/M | 4X6X11X57 |
| E5522050 | ALU-POWER 2FL 45deg. Helix Long E/M | 5X6X13X57 |
| E5522060 | ALU-POWER 2FL 45deg. Helix Long E/M | 6X6X13X57 |
| E5522080 | ALU-POWER 2FL 45deg. Helix Long E/M | 8X8X19X63 |
| E5522100 | ALU-POWER 2FL 45deg. Helix Long E/M | 10X10X22X72 |
| E5522120 | ALU-POWER 2FL 45deg. Helix Long E/M | 12X12X26X83 |
| E5742060 | ALU-POWER 3FL 30deg. Helix Long Roughing(Coarse) E/M | 6X6X16X57 |
| E5742080 | ALU-POWER 3FL 30deg. Helix Long Roughing(Coarse) E/M | 8X8X16X63 |
| E5742100 | ALU-POWER 3FL 30deg. Helix Long Roughing(Coarse) E/M | 10X10X22X72 |
| E5742120 | ALU-POWER 3FL 30deg. Helix Long Roughing(Coarse) E/M | 12X12X26X83 |
| E5908020 | ALU-POWER 3FL 40deg. Helix Ball E/M | 2X6X3(5)X60 |
| E5908025 | ALU-POWER 3FL 40deg. Helix Ball E/M | 2.5X6X4(6)X60 |
| E5908030 | ALU-POWER 3FL 40deg. Helix Ball E/M | 3X6X4.5(6.5)X60 |
| E5908040 | ALU-POWER 3FL 40deg. Helix Ball E/M | 4X6X6(8)X65 |
| E5908060 | ALU-POWER 3FL 40deg. Helix Ball E/M | 6X6X9(12)X75 |
| E5908080 | ALU-POWER 3FL 40deg. Helix Ball E/M | 8X8X12(25)X75 |
| E5908100 | ALU-POWER 3FL 40deg. Helix Ball E/M | 10X10X15(30)X80 |
| E5910100 | ALU-POWER 2FL 50deg. Helix Ball E/M | 10X10X8.5(35)X75 |
| E5930060 | ALU-POWER 2FL 25deg. Helix Corner Radius E/M | 6(R0.2)X6X8X65 |
| E5A18030 | ALU-POWER 3FL 45deg. Helix Long E/M | 3X6X10X50 |
| E5A18040 | ALU-POWER 3FL 45deg. Helix Long E/M | 4X6X13X50 |
| E5A18050 | ALU-POWER 3FL 45deg. Helix Long E/M | 5X6X17X55 |
| E5A18060 | ALU-POWER 3FL 45deg. Helix Long E/M | 6X6X17X55 |
| E5D70010 | ALU-CUT 3FL 45deg. Helix E/M | 1X6X3X50 |
| E5D70015 | ALU-CUT 3FL 45deg. Helix E/M | 1.5X6X5X50 |
| E5D70020 | ALU-CUT 3FL 45deg. Helix E/M | 2X6X6X50 |
| E5D7002010 | ALU-CUT 3FL 45deg. Helix E/M | 2X6X10X60 |
| E5D70025 | ALU-CUT 3FL 45deg. Helix E/M | 2.5X6X10X55 |
| E5D7002512 | ALU-CUT 3FL 45deg. Helix E/M | 2.5X6X12X60 |
| E5D70030 | ALU-CUT 3FL 45deg. Helix E/M | 3X6X11X55 |
| E5D7003004 | ALU-CUT 3FL 45deg. Helix E/M | 3X6X4X45 |
| E5D70040 | ALU-CUT 3FL 45deg. Helix E/M | 4X6X13X55 |
| E5D7004005 | ALU-CUT 3FL 45deg. Helix E/M | 4X6X5X45 |
| E5D7004016 | ALU-CUT 3FL 45deg. Helix E/M | 4X6X16X65 |
| E5D7004020 | ALU-CUT 3FL 45deg. Helix E/M | 4X6X20X70 |
| E5D70045 | ALU-CUT 3FL 45deg. Helix E/M | 4.5X6X15X55 |
| E5D70050 | ALU-CUT 3FL 45deg. Helix E/M | 5X6X17X55 |
| E5D70060 | ALU-CUT 3FL 45deg. Helix E/M | 6X6X17X60 |
| E5D7006013 | ALU-CUT 3FL 45deg. Helix E/M | 6X6X13X50 |
| E5D7006025 | ALU-CUT 3FL 45deg. Helix E/M | 6X6X25X70 |
| E5D70080 | ALU-CUT 3FL 45deg. Helix E/M | 8X8X22X70 |
| E5D70100 | ALU-CUT 3FL 45deg. Helix E/M | 10X10X27X75 |
| E5D70120 | ALU-CUT 3FL 45deg. Helix E/M | 12X12X32X80 |
| E5D70140 | ALU-CUT 3FL 45deg. Helix E/M | 14X14X37X90 |
| E5D70160 | ALU-CUT 3FL 45deg. Helix E/M | 16X16X42X100 |
| E5D71010 | ALU-CUT 2FL 45deg. Helix E/M | 1X6X3X50 |
| E5D71015 | ALU-CUT 2FL 45deg. Helix E/M | 1.5X6X5X50 |
| E5D71020 | ALU-CUT 2FL 45deg. Helix E/M | 2X6X6X50 |
| E5D7102008 | ALU-CUT 2FL 45deg. Helix E/M | 2X6X8X50 |
| E5D7102010 | ALU-CUT 2FL 45deg. Helix E/M | 2X6X10X60 |
| E5D71025 | ALU-CUT 2FL 45deg. Helix E/M | 2.5X6X8X55 |
| E5D71030 | ALU-CUT 2FL 45deg. Helix E/M | 3X6X11X55 |
| E5D71040 | ALU-CUT 2FL 45deg. Helix E/M | 4X6X13X55 |
| E5D71050 | ALU-CUT 2FL 45deg. Helix E/M | 5X6X17X55 |
| E5D71060 | ALU-CUT 2FL 45deg. Helix E/M | 6X6X17X60 |
| E5D71080 | ALU-CUT 2FL 45deg. Helix E/M | 8X8X22X70 |
| E5D71100 | ALU-CUT 2FL 45deg. Helix E/M | 10X10X27X75 |
| E5D71120 | ALU-CUT 2FL 45deg. Helix E/M | 12X12X32X80 |
| E5D71140 | ALU-CUT 2FL 45deg. Helix E/M | 14X14X37X90 |
| E5D7208010 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 8(R1)X8X12(25)X80 |
| E5D7212010 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 12(R1)X12X20(35)X110 |
| E5D73060 | ALU-CUT 3FL 45deg. Helix Roughing E/M | 6X6X15X60 |
| E5D73060C | ALU-CUT 3FL 45deg. Helix Long Roughing E/M | 6X6X25X80 |
| E5D73080 | ALU-CUT 3FL 45deg. Helix Roughing E/M | 8X8X20X65 |
| E5D73080C | ALU-CUT 3FL 45deg. Helix Long Roughing E/M | 8X8X30X90 |
| E5D73100 | ALU-CUT 3FL 45deg. Helix Roughing E/M | 10X10X25X70 |
| E5D73100C | ALU-CUT 3FL 45deg. Helix Long Roughing E/M | 10X10X40X100 |
| E5D73120 | ALU-CUT 3FL 45deg. Helix Roughing E/M | 12X12X30X80 |
| E5D73120B | ALU-CUT 3FL 45deg. Helix Roughing E/M | 12X12X14(36)X100 |
| E5D73140 | ALU-CUT 3FL 45deg. Helix Roughing E/M | 14X16X35X90 |
| E5D73160 | ALU-CUT 3FL 45˚ R E/M | 16X16X42X100 |
| E5D73160B | ALU-CUT 3FL 45deg. Helix Roughing E/M | 16X16X18(46)X120 |
| E5D73200 | ALU-CUT 3FL 45deg. Helix Roughing E/M | 20X20X48X100 |
| E5D74060 | ALU-CUT 3FL WAVE-CUT E/M | 6X6X13(20)X70 |
| E5D74080 | ALU-CUT 3FL WAVE-CUT E/M | 8X8X19(26)X80 |
| E5D74100 | ALU-CUT 3FL WAVE-CUT E/M | 10X10X22(32)X80 |
| E5D74120 | ALU-CUT 3FL WAVE-CUT E/M | 12X12X26(36)X90 |
| E5D74140 | ALU-CUT 3FL WAVE-CUT E/M | 14X16X28(40)X110 |
| E5D74160 | ALU-CUT 3FL WAVE-CUT E/M | 16X16X32(46)X120 |
| E5D74200 | ALU-CUT 3FL WAVE-CUT E/M | 20X20X38(52)X120 |
| E5E48060 | ALU-POWER 2FL 45deg. Helix Short E/M | 6X6X10X54 |
| E5E49030 | ALU-POWER 3FL 45deg. Helix Long E/M | 3X6X12X57 |
| E5E49040 | ALU-POWER 3FL 45deg. Helix Long E/M | 4X6X15X57 |
| E5E49050 | ALU-POWER 3FL 45deg. Helix Long E/M | 5X6X20X57 |
| E5E49060 | ALU-POWER 3FL 45deg. Helix Long E/M | 6X6X20X65 |
| E5E49080 | ALU-POWER 3FL 45deg. Helix Long E/M | 8X8X22X65 |
| E5E49100 | ALU-POWER 3FL 45deg. Helix Long E/M | 10X10X25X70 |
| E5E49120 | ALU-POWER 3FL 45deg. Helix Long E/M | 12X12X25X75 |
| E5E50030 | ALU-POWER 3FL 45deg. Helix E/M | 3X6X8(12)X57 |
| E5E50040 | ALU-POWER 3FL 45deg. Helix E/M | 4X6X11(18)X57 |
| E5E50060 | ALU-POWER 3FL 45deg. Helix E/M | 6X6X13(18)X57 |
| E5E51030 | ALU-POWER 3FL 45deg. Helix Long Corner Radius E/M | 3(R0.5)X6X12X57 |
| E5E51040 | ALU-POWER 3FL 45deg. Helix Long Corner Radius E/M | 4(R0.5)X6X15X57 |
| E5E51080 | ALU-POWER 3FL 45deg. Helix Long Corner Radius E/M | 8(R0.5)X8X22X65 |
| E5E51100 | ALU-POWER 3FL 45deg. Helix Long Corner Radius E/M | 10(R0.5)X10X25X70 |
| E5E51905 | ALU-POWER 3FL 45deg. Helix Long Corner Radius E/M | 8(R1)X8X22X65 |
| EG910060 | ALU-POWER 2FL 50deg. Helix Short Ball E/M(TiCN) | 6X6X5.5X55 |
| EG910080 | ALU-POWER 2FL 50? B E/M | 8X8X7(30)X65 |
| EG910100 | ALU-POWER 2FL 50deg. Helix Ball E/M | 10X10X8.5(35)X75 |
| EG99928494 | ALU-WIN 2FL 45deg. Helix Special E/M(TiCN) | 0.86X6X0.6X40 |
| EG99928495 | ALU-WIN 2FL 45deg. Helix Special E/M(TiCN) | 3X6X3X40 |
Dao phay ngón CBN
• Đường kính từ D0.5-D2 mm
• Đâu dao được gắn vật liệu CBN (Cubic Boron Nitride)
• Dùng để gia công tinh độ bóng rất cao
• Gia công vật liệu sau nhiệt luyện độ cứng đến 70HRc
• Khả năng chịu được nhiệt cắt cao, tuổi bền dao được cải thiện hơn nhiều so với vật liệu hợp kim.
• Năng suất gia công cao, tiết kiệm thời gian gia công
Dao phay CRX S
• Đường kính: phẳng D0.5-D12 mm, cầu R0.25- R6.0
• Dùng để gia công vật liệu điện cực đồng cũng như vật liệu phi từ tính khác
• Dao hợp kim được phủ lớp DLC (Dimond like coating)
• Độ bóng bề mặt cao
Dao phay D-Power Graphite
• Dao phay cao cấp chuyên dụng cho vật liệu graphite, được dung nhiều cho gia công điện cực graphite.
• Đường kính: phẳng D0.5-D12 mm, cầu R0.2-R6
Dao phay D-Power CFRP
• Đường kính: phẳng D6-D12 mm,
• Thiết kế lưỡi dao đặc biệt chuyên dung để gia công vật liệu composite.
• Sử dụng phổ biến trong ngành gia công chi tiết hàng không
Dao phay V7
• Đường kính từ D3-D25 mm
• Vật liệu hợp kim cỡ hạt micro
• Thiết kế lưỡi dao đặc biệt gia công, dung để gia công phay tốc độ cao và chế độ cắt nặng.
• Áp dụng cho gia công vật liệu thép trước nhiệt luyện và vật liệu Inox
Dao phay K-2
• Đường kính từ D1-D20 mm
• Dao hợp kim cỡ hạt micro
• Dao dung cho mục đích gia công thông thường từ thô đến tinh
| Mã sản phẩm | Mô tả | Kích thước | |
| E5C12010 | E5C70010 | ALPHA-ALU 2FL 45deg. Helix E/M | 1X6X3X40 |
| E5C12015 | E5C70015 | ALPHA-ALU 2FL 45deg. Helix E/M | 1.5X6X5X40 |
| E5C12020 | E5C70020 | ALPHA-ALU 2FL 45deg. Helix Short E/M | 2X6X6X40 |
| E5C12025 | E5C70025 | ALPHA-ALU 2FL 45deg. Helix E/M | 2.5X6X8X40 |
| E5C12030 | E5C70030 | ALPHA-ALU 2FL 45deg. Helix Short E/M | 3X6X11X50 |
| E5C12040 | E5C70040 | ALPHA-ALU 2FL 45deg. Helix E/M | 4X6X13X50 |
| E5C12050 | E5C70050 | ALPHA-ALU 2FL 45deg. Helix Short E/M | 5X6X17X55 |
| E5C12060 | E5C70060 | ALPHA-ALU 2FL 45deg. Helix E/M | 6X6X17X55 |
| E5C12080 | E5C70080 | ALPHA-ALU 2FL 45deg. Helix Short E/M | 8X8X22X65 |
| E5C12100 | E5C70100 | ALPHA-ALU 2FL 45deg. Helix E/M | 10X10X27X70 |
| E5C12120 | E5C70120 | ALPHA-ALU 2FL 45deg. Helix E/M | 12X12X32X80 |
| E5C14010 | E5C72010 | ALPHA-ALU 3FL 45deg. Helix E/M | 1X6X3X50 |
| E5C14015 | E5C72015 | ALPHA-ALU 3FL 45deg. Helix E/M | 1.5X6X5X50 |
| E5C14020 | E5C72020 | ALPHA-ALU 3FL 45deg. Helix E/M | 2X6X6X50 |
| E5C14025 | E5C72025 | ALPHA-ALU 3FL 45deg. Helix E/M | 2.5X6X8X50 |
| E5C14030 | E5C72030 | ALPHA-ALU 3FL 45deg. Helix E/M | 3X6X11X50 |
| E5C14040 | E5C72040 | ALPHA-ALU 3FL 45deg. Helix E/M | 4X6X13X50 |
| E5C14050 | E5C72050 | ALPHA-ALU 3FL 45deg. Helix E/M | 5X6X17X55 |
| E5C14060 | E5C72060 | ALPHA-ALU 3FL 45deg. Helix E/M | 6X6X17X55 |
| E5C14070 | E5C72070 | ALPHA-ALU 3FL 45deg. Helix E/M | 7X8X22X65 |
| E5C14080 | E5C72080 | ALPHA-ALU 3FL 45deg. Helix E/M | 8X8X22X65 |
| E5C14100 | E5C72100 | ALPHA-ALU 3FL 45deg. Helix E/M | 10X10X27X70 |
| E5C14120 | E5C72120 | ALPHA-ALU 3FL 45deg. Helix E/M | 12X12X32X80 |
| E5C14140 | E5C72140 | ALPHA-ALU 3FL 45deg. Helix E/M | 14X14X37X85 |
| E5C14160 | E5C72160 | ALPHA-ALU 3FL 45deg. Helix E/M | 16X16X42X100 |
| E5C15040 | E5C73040 | ALPHA-ALU 3FL 45deg. Helix E/M | 4X6X16X70 |
| E5C15060 | E5C73060 | ALPHA-ALU 3FL 45deg. Helix E/M | 6X6X22X70 |
| E5C15080 | E5C73080 | ALPHA-ALU 3FL 45deg. Helix E/M | 8X8X28X80 |
| E5C15100 | E5C73100 | ALPHA-ALU 3FL 45deg. Helix E/M | 10X10X32X90 |
| E5C15120 | E5C73120 | ALPHA-ALU 3FL 45deg. Helix E/M | 12X12X38X95 |
| E5C15160 | E5C73160 | ALPHA-ALU 3FL 45deg. Helix Medium E/M | 16X16X52X110 |
| E5C16030015 | E5C74030015 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 3X6X15X65 |
| E5C16030020 | E5C74030020 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 3X6X20X70 |
| E5C16030025 | E5C74030025 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 3X6X25X75 |
| E5C16040020 | E5C74040020 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 4X6X20X70 |
| E5C16040030 | E5C74040030 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 4X6X30X80 |
| E5C16050025 | E5C74050025 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 5X6X25X70 |
| E5C16050035 | E5C74050035 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 5X6X35X80 |
| E5C16050040 | E5C74050040 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 5X6X40X85 |
| E5C16060025 | E5C74060025 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 6X6X25X70 |
| E5C16060030 | E5C74060030 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 6X6X30X75 |
| E5C16060035 | E5C74060035 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 6X6X35X80 |
| E5C16060042 | E5C74060042 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 6X6X42X90 |
| E5C16080030 | E5C74080030 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 8X8X30X80 |
| E5C16080040 | E5C74080040 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 8X8X40X90 |
| E5C16080045 | E5C74080045 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 8X8X45X95 |
| E5C16080050 | E5C74080050 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 8X8X50X100 |
| E5C16100035 | E5C74100035 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 10X10X35X90 |
| E5C16100045 | E5C74100045 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 10X10X45X100 |
| E5C16100065 | E5C74100065 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 10X10X65X120 |
| E5C16120055 | E5C74120055 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 12X12X55X110 |
| E5C16120065 | E5C74120065 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 12X12X65X120 |
| E5C16120075 | E5C74120075 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 12X12X75X135 |
| E5C16160065 | E5C74160065 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 16X16X65X135 |
| E5C16200075 | E5C74200075 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 20X20X75X150 |
| EMB95010KN | EMC52010 | ALPHA-G 2FL 35deg. Helix Short E/M | 1X4X3X50 |
| EMB95015KN | EMC52015 | ALPHA-G 2FL 35deg. Helix Short E/M | 1.5X4X4X50 |
| EMB95020KN | EMC52020 | ALPHA-G 2FL 35deg. Helix Short E/M | 2X4X6X50 |
| EMB95025KN | EMC52025 | ALPHA-G 2FL 35deg. Helix Short E/M | 2.5X4X8X50 |
| EMB95030KN | EMC52030 | ALPHA-G 2FL 35deg. Helix Short E/M | 3X4X8X50 |
| EMB95040KN | EMC52040 | ALPHA-G 2FL 35deg. Helix Short E/M | 4X4X11X50 |
| EMB95045KN | EMC52045 | ALPHA-G 2FL 35deg. Helix Short E/M | 4.5X6X11X50 |
| EMB95050KN | EMC52050 | ALPHA-G 2FL 35deg. Helix Short E/M | 5X6X13X50 |
| EMB95060KN | EMC52060 | ALPHA-G 2FL 35deg. Helix Short E/M | 6X6X16X50 |
| EMB95080KN | EMC52080 | ALPHA-G 2FL 35deg. Helix Short E/M | 8X8X20X60 |
| EMB95090KN | EMC52090 | ALPHA-G 2FL 35deg. Helix Short E/M | 9X10X20X75 |
| EMB95100KN | EMC52100 | ALPHA-G 2FL 35deg. Helix Short E/M | 10X10X25X75 |
| EMB95120KN | EMC52120 | ALPHA-G 2FL 35deg. Helix Short E/M | 12X12X32X75 |
| EMB95901KN | EMC52901 | ALPHA-G 2FL 35deg. Helix Short E/M | 3X6X8X50 |
| EMB95903KN | EMC52903 | ALPHA-G 2FL 35deg. Helix Short E/M | 4X6X11X50 |
| EMB96010KN | EMC54010 | ALPHA-G 4FL 35deg. Helix Short E/M | 1X4X3X50 |
| EMB96015KN | EMC54015 | ALPHA-G 4FL 35deg. Helix Short E/M | 1.5X4X4X50 |
| EMB96020KN | EMC54020 | ALPHA-G 4FL 35deg. Helix Short E/M | 2X4X6X50 |
| EMB96025KN | EMC54025 | ALPHA-G 4FL 35deg. Helix Short E/M | 2.5X4X8X50 |
| EMB96030KN | EMC54030 | ALPHA-G 4FL 35deg. Helix Short E/M | 3X4X8X50 |
| EMB96040KN | EMC54040 | ALPHA-G 4FL 35deg. Helix Short E/M | 4X4X11X50 |
| EMB96050KN | EMC54050 | ALPHA-G 4FL 35deg. Helix Short E/M | 5X6X13X50 |
| EMB96060KN | EMC54060 | ALPHA-G 4FL 35deg. Helix Short E/M | 6X6X16X50 |
| EMB96070KN | EMC54070 | ALPHA-G 4FL 35deg. Helix Short E/M | 7X8X20X60 |
| EMB96080KN | EMC54080 | ALPHA-G 4FL 35deg. Helix Short E/M | 8X8X20X60 |
| EMB96100KN | EMC54100 | ALPHA-G 4FL 35deg. Helix Short E/M | 10X10X25X75 |
| EMB96120KN | EMC54120 | ALPHA-G 4FL 35deg. Helix Short E/M | 12X12X32X75 |
| EMB96140KN | EMC54140 | ALPHA-G 4FL 35deg. Helix Short E/M | 14X16X40X100 |
| EMB96160KN | EMC54160 | ALPHA-G 4FL 35deg. Helix Short E/M | 16X16X40X100 |
| EMB96180KN | EMC54180 | ALPHA-G 4FL 35deg. Helix Short E/M | 18X20X40X100 |
| EMB96200KN | EMC54200 | ALPHA-G 4FL 35deg. Helix Short E/M | 20X20X45X100 |
| EMB96901KN | EMC54901 | ALPHA-G 4FL 35deg. Helix Short E/M | 3X6X8X50 |
| EMB96903KN | EMC54903 | ALPHA-G 4FL 35deg. Helix Short E/M | 4X6X11X50 |
| EMB97010KN | EMC56010 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 1X4X2X50 |
| EMB97015KN | EMC56015 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 1.5X4X4X50 |
| EMB97020KN | EMC56020 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 2X4X5X50 |
| EMB97025KN | EMC56025 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 2.5X4X6X50 |
| EMB97030KN | EMC56030 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 3X4X6X50 |
| EMB97040KN | EMC56040 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 4X4X8X50 |
| EMB97050KN | EMC56050 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 5X6X10X50 |
| EMB97060KN | EMC56060 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 6X6X12X50 |
| EMB97080KN | EMC56080 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 8X8X14X60 |
| EMB97100KN | EMC56100 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 10X10X20X75 |
| EMB97120KN | EMC56120 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 12X12X24X75 |
| EMB97160KN | EMC56160 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 16X16X32X100 |
| EMB97200KN | EMC56200 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 20X20X40X100 |
| EMB97901KN | EMC56901 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 3X6X6X50 |
| EMB97902KN | EMC56902 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 4X6X8X50 |
| EMB98060KN | EMC57060 | ALPHA-G 6FL 45deg. Helix Short E/M | 6X6X16X50 |
| EMB98080KN | EMC57080 | ALPHA-G 6FL 45deg. Helix Short E/M | 8X8X19X60 |
| EMB98100KN | EMC57100 | ALPHA-G 6FL 45deg. Helix Short E/M | 10X10X22X75 |
| EMB98120KN | EMC57120 | ALPHA-G 6FL 45deg. Helix Short E/M | 12X12X26X75 |
| EMC01006020 | EMC59006020 | ALPHA-G 2FL 30deg. Helix Rib E/M | 0.6X4X0.9(2)X45 |
| EMC01025100 | EMC59025100 | ALPHA-G 2FL 30deg. Helix Rib E/M | 2.5X4X3.7(10)X45 |
| EMC02015100 | EMC60015100 | ALPHA-G 2FL 30deg. Helix Rib Ball E/M | 1.5X4X1.5(10)X45 |
| EMC02020200 | EMC60020200 | ALPHA-G 2FL 30deg. Helix Rib Ball E/M | 2X4X2(20)X55 |
| EMC02020220 | EMC60020220 | ALPHA-G 2FL 30deg. Helix Rib Ball E/M | 2X4X2(22)X60 |
| EMC02020260 | EMC60020260 | ALPHA-G 2FL 30deg. Helix Rib Ball E/M | 2X4X2(26)X70 |
| EMC0304003 | EMC6104003 | ALPHA-G 2FL 30deg. Helix Corner Radius E/M | 4(R0.3)X6X12X70 |
| EMC0308010 | EMC6108010 | ALPHA-G 2FL 30deg. Helix Corner Radius E/M | 8(R1)X8X20X100 |
| EMC0406010 | EMC6206010 | ALPHA-G 4FL CR E/M | 6(R1)X6X15X90 |
| EMC0410020 | EMC6210020 | ALPHA-G 4FL 30deg. Helix Corner Radius E/M | 10(R2)X10X25X100 |
| EMC09060 | EMC67060 | ALPHA-SUS 4FL 30deg. Helix Short E/M | 6X6X10X54 |
| EMC09080 | EMC67080 | ALPHA-SUS 4FL 30deg. Helix Short E/M | 8X8X12X58 |
| EMC09100 | EMC67100 | ALPHA-SUS 4FL 30deg. Helix Short E/M | 10X10X14X66 |
| EMC09120 | EMC67120 | ALPHA-SUS 4FL 30deg. Helix Short E/M | 12X12X16X73 |
| EMC09200 | EMC67200 | ALPHA-SUS 4FL 30deg. Helix Short E/M | 20X20X26X92 |
| EMC10060 | EMC68060 | ALPHA-SUS 4FL 30deg. Helix Short E/M | 6X6X13X57 |
| EMC10080 | EMC68080 | ALPHA-SUS 4FL 30deg. Helix Short E/M | 8X8X19X63 |
| EMC10100 | EMC68100 | ALPHA-SUS 4FL 30deg. Helix Short E/M | 10X10X22X72 |
| EMC10120 | EMC68120 | ALPHA-SUS 4FL 30deg. Helix Short E/M | 12X12X26X83 |
| EMC11060 | EMC69060 | ALPHA-SUS 4FL 45deg. Helix Roughing(Fine) E/M | 6X6X13X60 |
| EMC11080 | EMC69080 | ALPHA-SUS 4FL 45deg. Helix Roughing(Fine) E/M | 8X8X19X65 |
| EMC11100 | EMC69100 | ALPHA-SUS 4FL 45deg. Helix Roughing(Fine) E/M | 10X10X22X70 |
| EMC11120 | EMC69120 | ALPHA-SUS 4FL 45deg. Helix Roughing(Fine) E/M | 12X12X26X80 |
| EMC11160 | EMC69160 | ALPHA-SUS 5FL 45deg. Helix Roughing(Fine) E/M | 16X16X42X110 |
| EMC45030KN | EMC53030 | ALPHA-G 2FL 35˚ LONG E/M | 3X4X15X60 |
| EMC45060KN | EMC53060 | ALPHA-G 2FL 35deg. Helix Long E/M | 6X6X30X75 |
| EMC45080KN | EMC53080 | ALPHA-G 2FL 35deg. Helix Long E/M | 8X8X35X100 |
| EMC45100KN | EMC53100 | ALPHA-G 2FL 35deg. Helix Long E/M | 10X10X45X100 |
| EMC45120KN | EMC53120 | ALPHA-G 2FL 35deg. Helix Long E/M | 12X12X45X100 |
| EMC47100KN | EMC55100 | ALPHA-G 4FL 35deg. Helix Long E/M | 10X10X45X100 |
| EMC47120KN | EMC55120 | ALPHA-G 4FL 35deg. Helix Long E/M | 12X12X45X100 |
| EMC47901KN | EMC55901 | ALPHA-G 4FL 35deg. Helix Long E/M | 3X6X15X60 |
| G9A23010 | K-2 CARBIDE 2FL 30deg. Helix Regular E/M | 1X4X3X50 | |
| G9A23050 | K-2 CARBIDE 2FL 30deg. Helix Regular E/M | 5X6X13X50 | |
| G9B52901 | CARBIDE 2FL 30deg. Helix Long Ball E/M(TiAlN) | 1X6X2X75 | |
| G9B52903 | CARBIDE 2FL 30deg. Helix Long Ball E/M(TiAlN) | 2X6X4X75 | |
| G9B80929 | K-2 CARBIDE 2FL 30deg. Helix Rib E/M | 2X4X3(18)X50 | |
| GFC05006 | GFC63006 | ALPHA-PLUS 2FL 30deg. Helix Stub E/M | 0.6X4X1.2X40 |
| GFC05010 | GFC63010 | ALPHA-PLUS 2FL 30deg. Helix E/M | 1X6X1.5(3)X50 |
| GFC05015 | GFC63015 | ALPHA-PLUS 2FL 30deg. Helix E/M | 1.5X6X1.7(4)X50 |
| GFC05020 | GFC63020 | ALPHA-PLUS 2FL 30deg. Helix E/M | 2X6X2(5)X50 |
| GFC05025 | GFC63025 | ALPHA-PLUS 2FL 30deg. Helix E/M | 2.5X6X2.5(6)X55 |
| GFC05030 | GFC63030 | ALPHA-PLUS 2FL 30deg. Helix E/M | 3X6X3(8)X55 |
| GFC05040 | GFC63040 | ALPHA-PLUS 2FL 30deg. Helix E/M | 4X6X4(10)X55 |
| GFC05050 | GFC63050 | ALPHA-PLUS 2FL 30deg. Helix E/M | 5X6X5(13)X55 |
| GFC05060 | GFC63060 | ALPHA-PLUS 2FL 30deg. Helix E/M | 6X6X6(15)X55 |
| GFC05080 | GFC63080 | ALPHA-PLUS 2FL 30deg. Helix E/M | 8X8X8(20)X65 |
| GFC05100 | GFC63100 | ALPHA-PLUS 2FL 30deg. Helix E/M | 10X10X10(25)X75 |
| GFC05120 | GFC63120 | ALPHA-PLUS 2FL 30deg. Helix E/M | 12X12X12(28)X85 |
| GFC06080 | GFC64080 | ALPHA-PLUS 4FL 30deg. Helix Stub E/M | 8X8X8(20)X65 |
| GFC07010 | GFC65010 | ALPHA-PLUS 2FL 30deg. Helix Ball E/M | 1X6X1.5X50 |
| GFC07015 | GFC65015 | ALPHA-PLUS 2FL 30deg. Helix Ball E/M | 1.5X6X2X50 |
| GFC07020 | GFC65020 | ALPHA-PLUS 2FL 30deg. Helix Ball E/M | 2X6X2.5X50 |
| GFC07025 | GFC65025 | ALPHA-PLUS 2FL 30deg. Helix Ball E/M | 2.5X6X3X50 |
| GFC07030 | GFC65030 | ALPHA-PLUS 2FL 30deg. Helix Ball E/M | 3X6X4X60 |
| GFC07040 | GFC65040 | ALPHA-PLUS 2FL 30deg. Helix Ball E/M | 4X6X5X60 |
| GFC07050 | GFC65050 | ALPHA-PLUS 2FL 30deg. Helix Ball E/M | 5X6X6X60 |
| GFC07060 | GFC65060 | ALPHA-PLUS 2FL 30deg. Helix Ball E/M | 6X6X7X60 |
| GFC07080 | GFC65080 | ALPHA-PLUS 2FL 30deg. Helix Ball E/M | 8X8X9X60 |
| GFC07100 | GFC65100 | ALPHA-PLUS 2FL 30deg. Helix Ball E/M | 10X10X11X60 |
| GFC07120 | GFC65120 | ALPHA-PLUS 2FL 30deg. Helix Ball E/M | 12X12X14X80 |
Dao phay Tank power
• Đường kính từ D1-D25 mm
• Vật liệu dao thép gió HSS-PM
• Dùng để gia công vật liệu có độ dai cao như Inox, thép carbon cao
• Ứng dụng gia công từ thô đến tinh.
Dao phay HSS
• Đường kính từ D1-D25 mm
• Vật liệu dao thép gió cao cấp HSS
• Dùng cho gia công các vật liệu cơ bản, ứng dụng phay thông thường, trên máy vạn năng hoặc máy CNC
• Ứng dụng gia công từ thô đến tinh.
Dao phay New Centery
• Đường kính từ D1-D25 mm
• Vật liệu dao hợp kim
• Dùng cho các loại vật liệu phổ thông và các ứng dụng phay thông thương
• Ứng dụng gia công từ thô đến tinh.
Dao khoan thay đầu
•Đường kính từ D12-D31.75 mm
• Chiều sâu khoan: 3D, 5D, 7D
• Đầu dao vật liệu hợp kim, thân dao bằng thép dụng cụ
• Thay đầu khoan nhanh chóng, có thể thay trực tiếp trên máy.
• Dùng cho gia công vật liệu thép và Inox
• Dung sai lỗ tương đương với dao solid carbide.
• Có đường nước làm mát trong
Mũi khoan Dream Drills General
• Đường kính từ D1-D20 mm
• Vật liệu dao hợp kim
• Là dao khoan thông dụng cho vật liệu thép độ cứng từ 30-50 HRc
• Có đường nước làm mát trong.
Mũi khoan Dream Drills Inox
• Đường kính từ D1-D20 mm
• Vật liệu dao hợp kim
• Là dao khoan thông dụng cho vật liệu Inox
• Có đường nước làm mát trong.
