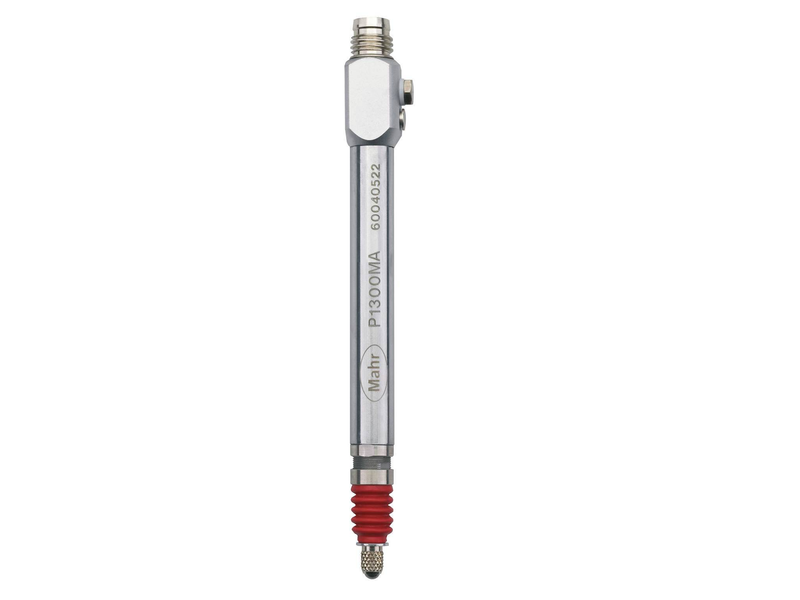

Millimar P1300 MA without cable
Art. no. 4400182
Inductive probe Millimar P1300 MA without cable
Compatibility: Mahr half-bridge
Measuring range mm: ± 2 mm
Vacuum lifter (standard option)
Measuring force (N): 0,75 N +/- 0,15 N
Package contains: test certificate, instruction manual, spanner for preliminary stroke setting, hose connector for compressed air
- Mahr compatibility
- Proven Mahr half-bridge technology
- Very easy to service: cables and probes can be separated via the plug-in connector
- Easy to convert to pneumatic lifting
- Measuring pin mounted in rotary stroke bearing
- Chemical resistance data: resistant to oil, gasoline, water and aliphatic compounds. Moderately resistant to acids, bases, solvents and ozone
| Millimar P1300 MA without cable | Art. no. 4400182 | |
|---|---|
| Measuring range from | -2 mm |
| Measuring range up to | 2 mm |
| Product type | P1300 MA without cable |
| Distance of lower stop MIN | -2.2 mm |
| Distance of lower stop MAX | 0 mm |
| Distance of upper stop MIN | 2.2 mm |
| Distance of upper stop MAX | 4.4 mm |
| Lifter / retraction | Vacuum lifter (standard option) |
| Measuring force (N) | 0,75 N +/- 0,15 N |
| Increase in measuring force | 0,3 N/mm |
| Sensitivity deviation | 0.3 % |
| Repeatability fw (µm) | 0.1 µm |
| Measuring value hysteresis fu (µm) | 0.5 µm |
| Linearity deviation within +/- 0,5 mm | 0.4 µm |
| Linearity deviation within +/- 1,0 mm | 1.5 µm |
| Linearity deviation within +/- 2,0 mm | 3 µm |
| IP protection category | IP 64 |
| Operating temperature Min | 10 °C |
| Operating temperature Max | 40 °C |
| Storage temperature MIN | -10 °C |
| Storage temperature MAX | 80 °C |
| Temperature coefficient | 0.15 µm/°C |
| Compatibility | Mahr half-bridge |
| Dimensions | a 85.6 mm | b 53.3 mm | c 98.6 mm | d 125 mm | |
