Mâm cặp cường lực 3 chấu tiêu chuẩn HS (tâm mở)
Thương hiệu: Samchully
Mã: Đang cập nhật
Chất liệu: Chuck
Thương hiệu:
Samchully
|
Tình trạng:
Còn hàng
Mâm cặp cường lực HS
Mâm cặp 3 chấu tiêu chuẩn- tâm mở tốc độ cao
Ứng dụng / Lợi ích
Mâm cặp cường lực 3 chấu tiêu chuẩn tốc độ cao, kiểu chêm tâm mở.
Tính năng kỹ thuật
Lực kẹp được đạo ra ởi cơ cấu chêm
Nhiệt luyện để đảm bảo độ chính xác cao nhất và tuổi thọ đầu kẹp dài hơn

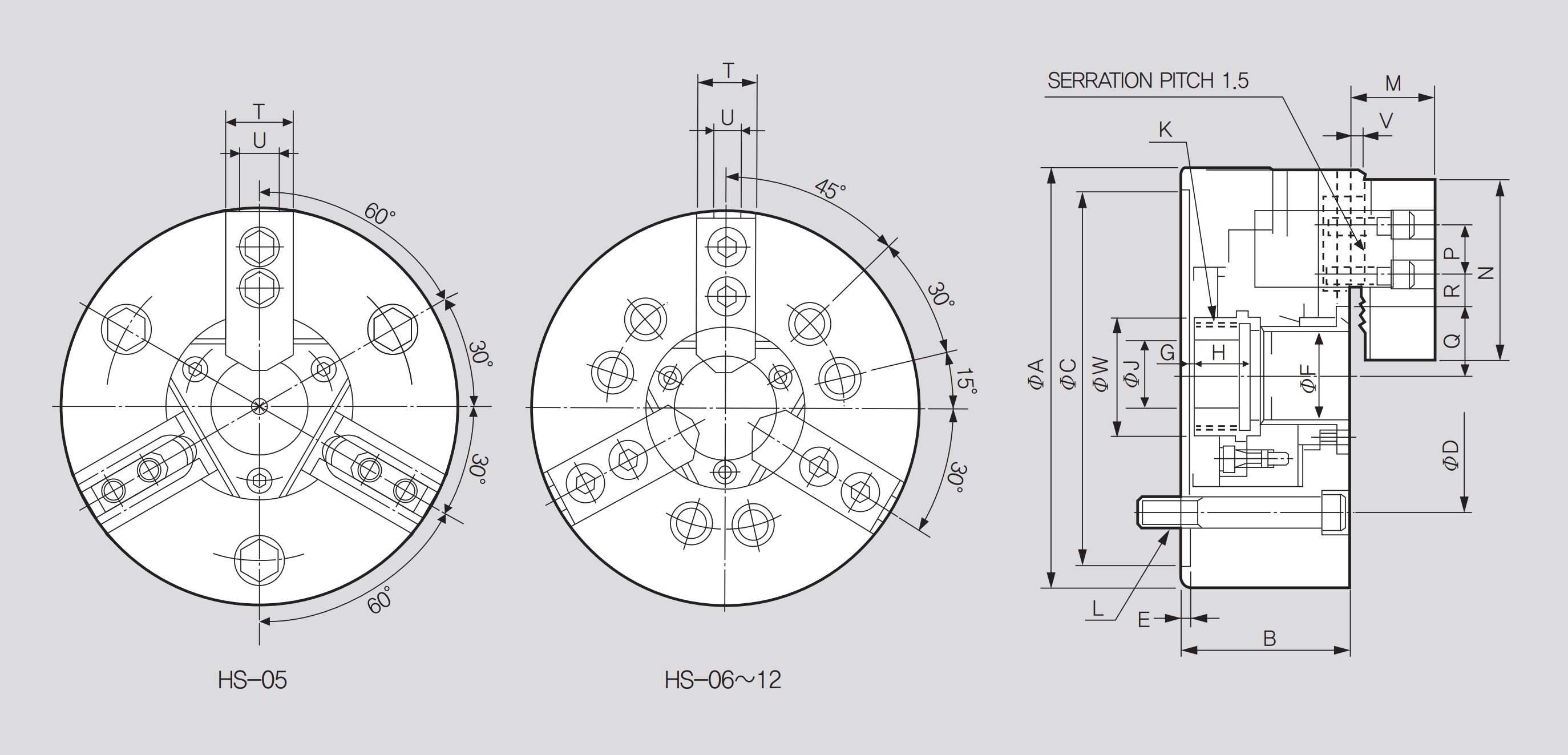

Thông số kỹ thuật.
| |
HS-05 |
HS-06 |
HS-08 |
HS-10 |
HS-12 |
|
Thru Hole Dia.Đường kính lỗ thông [mm] |
33 |
46 |
52 |
77 |
91 |
|
Grip Dia. Max. Đường kính kẹp Max. [mm] |
135 |
169 |
210 |
254 |
304 |
|
Grip Dia. Min. Đường kính kẹp Min. [mm] |
12 |
15 |
13 |
31 |
34 |
|
Jaw Stroke Dia. Đường kính hành trình má kẹp [mm] |
5.4 |
5.5 |
7.4 |
8.8 |
10.6 |
|
Plunger Stroke. Hành trình pit-tông kẹp [mm] |
10 |
12 |
16 |
19 |
23 |
|
Permissible Input Force.Lực đầu vào cho phép [kN(kgf)] |
17.5(1784) |
22(2243) |
34.8(3549) |
43(4385) |
55(5608) |
|
Max. Static Gripping Force.Lực kẹp tĩnh tối đa [kN(kgf)] |
36(3671) |
57(5812) |
86(8769) |
111(11319) |
144(14686) |
|
Max. r.p.m. Tốc độ quay tối đa [min-¹] |
7000 |
6000 |
5000 |
4200 |
3300 |
|
Weight. Khối lượng [kg] |
6.7 |
11.9 |
22.3 |
34.5 |
55.3 |
|
Moment of inertia.Mô men quán tính [kg·m²] |
0.016 |
0.052 |
0.145 |
0.305 |
0.707 |
|
Operating Cylinder. Cylinder sử dụng |
SH-10036 |
SD-13546 |
SD-15452 |
SD-18577 |
SD-20591 |
|
Max. Hydraulic Pressure. Áp suất thủy lực tối đa [MPa(kgf/cm²)] |
2.9(30) |
2.8(28.6) |
2.65(27) |
2.7(27.5) |
2.7(27.5) |
|
Operating Hard Jaw. Chấu cặp sử dụng |
HB04N1 |
HB06A1 |
HB08A1 |
HB10A1 |
HB12N1 |
|
KITAGAWA® Model. Mã KITAGAWA tương đương |
B-205 |
B-206 |
B-208 |
B-210 |
B-212 |
